Casa /Prodotti/Attraverso l'anello di contatto del foro/Diameter 25.4mm 12CH 10A Gold/Gold Hole High Current Conductive Slip Ring Through Hole Cavity Shaft Slip Ring With Aluminum Alloy Shell

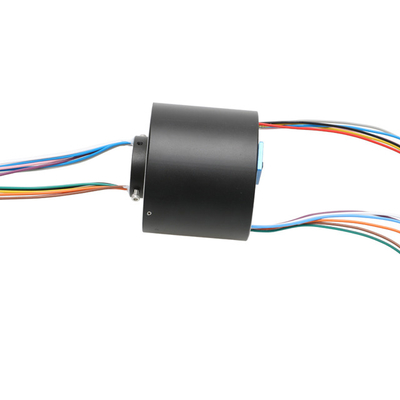

Diameter 25.4mm 12CH 10A Gold/Gold Hole High Current Conductive Slip Ring Through Hole Cavity Shaft Slip Ring With Aluminum Alloy Shell

1 piece
MOQ
Diameter 25.4mm 12CH 10A Gold/Gold Hole High Current Conductive Slip Ring Through Hole Cavity Shaft Slip Ring With Aluminum Alloy Shell
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: Hole Dia 25.4mm 12CH 10A
Type: Electronic Accessories
Product name: Conductive Slipring
Hole diameter: 25.4mm
Outer diameter: 85mm
Circuits: 12CH
Current: 10A
Rated voltage: 220VAC/DC
RPM: max.200RPM
Contact material: gold/gold
Shell material: aluminum alloy
Working life: ≥5 million rpm
Informazioni di base
Model Number: Hole Dia 25.4mm 12CH 10A
Termini di pagamento e spedizione
Descrizione di prodotto
Specification
item
value
Place of Origin
China
Guangdong
Brand Name
Shuaichi
Model Number
Hole Dia 25.4mm 12CH 10A
Type
Electronic Accessories
Product name
Conductive Slipring
Hole diameter
25.4mm
Outer diameter
85mm
Circuits
12CH
Current
10A
Rated voltage
220VAC/DC
RPM
max.200RPM
Contact material
gold/gold
Shell material
aluminum alloy
Working life
≥5 million rpm

Hole Dia 25.4mm 12CH 10A High Current Conductive Slipring Through Hole Hollow Shaft Slip Ring with Aluminum Alloy Outer Shell


Specification: - Hole diameter: 25.4mm - Outer diameter:85mm - Circuits:12CH - Current:10A - RPM: max.200RPM - Rated voltage:220VAC/DC - Working temperature:-20℃~+60℃ - Contact material:gold/gold - Cable:AWG17 - Length of cable:300mm for each side - Compressive strength:>=500V@50Hz - Insulation resistance:1000mOhm/500VDC - Shell material: aluminum alloy - Protection class:IP54 - Working life:≥5 million rpm (up to the environment and speed) Features: - High rotational accuracy, more stable performance, and longer service life. - The contact material is treated with precious metal+superhard gold plating, featuring small torque, stable operation, long service life, small resistance fluctuation, and small contact resistance, ensuring excellent transmission performance. Can be used for Automation equipment, working turntable,Camera Gimbal PTZ,robots,etc Package include: 1pcs x Slipring
Product Description
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
******
FAQ
1. who are we?
We are based in Guangdong, China, start from 2016,sell to Western Europe(42.00%),North America(28.00%),Domestic Market(10.00%),Northern Europe(6.00%),Southern Europe(6.00%),Eastern Asia(5.00%),South Asia(3.00%). There are total about null people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
slip ring
