Pancake slip ring flat slip ring 100M Ethernet and other signals for soldering device 2 wire slip ring 20a slip ring

Bargain Price Only in Alibaba

Description

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot. LPK series slip ring is divided into 2 kinds: separate pancake slip ring LPKS and LPK stand-alone pancake slip ring.

The LPK000-0220-08S-E2 pin connection slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPK000-0220-08S-E2 unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Features

• High Rotating Speed
• Unfailing contact, light figure
• Extremely low physical noise
• Transmitting power and signal in 360° rotation
• No interference or connection drop
• Rapid delivery

Specification

Main Application

• Military equipment
• Medical equipment
• Wind power equipment
• Manufacturing and control equipment
• Exhibition / display equipment
• Robot, radar antenna
• Magnetic actuator, turntable sensor

Outline Drawing

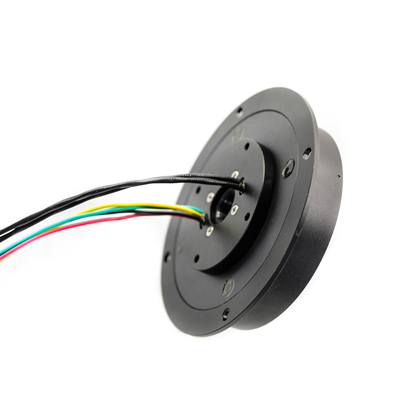

Product Display
