Our advantage:

More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems.

More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.

High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance.

10 million revolutions of quality assurance, so that you have no worries to cooperate with us!

Applications:

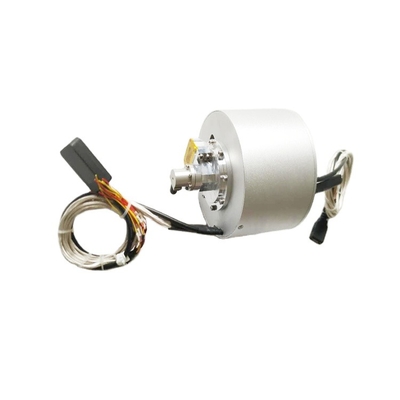

Pneumatic Hydraulic rotary joint is mainly used in metallurgical machinery, rolling machinery, paper machinery, construction machinery and many other industries.

Required parameters for ordering rotary joints:

1. Provide working parameters of rotary joint: speed, pressure and temperature.

2. Dimensions of rotary joints

3. Connection mode, flange connection and threaded connection

4. Thread size: M5, G1/8, G1/4, G3/8, G1/2, G3/4, G1

5. Number of pathways (1 in 1 out 1 pathway, 2 in 2 out 2 pathway)

6. Whether to equip with conductive slip rings, provide the number of circuits, current magnitude, whether the signal needs to be shielded.

7. Are there any requirements for the torque of rotary joints?

8. Whether there is a requirement for manufacturing materials, optional: stainless steel, aluminium alloy, 45 # steel, engineering plastics

Circulation Category:

1. One-way flow mode: install rotating joint at both ends of the drum, the fluid enters from one end and discharges from the other end without using inner tube.

2. One-way flow mode: a rotating joint is installed at one end of the drum, and the fluid is introduced and discharged at the same time. The rotation of the inner tube relative to the drum is static.

3. Two-way flow (internal tube fixation): Different from the previous one, there are different siphons in the drum, which discharge condensate. This type is mostly used for steam type.

4. Two-way flow (inner tube rotation): This type is used for the structure where the inner tube is relatively fixed together with the drum and runs synchronously with the drum. At this time, the fluid is introduced by the inner tube and discharged by the outer tube.

5. Two-way flow (inner tube rotation): A siphon running synchronously with the drum is installed inside the drum, and condensate is discharged. This type is mostly used for steam type.

FAQ:

Q1: What technical data should be provided for our customized slip ring model.

A: If you want to customize the special slip ring model, you need provide details as below:

1.operatring speed(RPM)

2.the type of installation

3.outline size

4.channels(the No. of single wire besides cable)

5.rated voltage & current for power rings and signal rings

6.the signal type and related

parameters(very important)

7.operating temperature h.IP(sealing requirements)

Q2: How long is your production lead time?

A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,

15 to 40 days for complex customized products.

Q3: What's your delivery port?

A: Our delivery port is Jiujiang, China Mainland

Q4: How do you delivery our goods?

A: Usually small orders can be delivered by air, big orders can be delivered by sea. It can be negotiated before delivering.
