Caratteristiche

Specificazioni

Model Number: JSR-TH110 Series

Type: Through Bore Slip Ring

Inner Size: 110mm

Current: 2A/5A/15A/20A/30A

Voltage: 380Vac/Vdc

Contact Material: Precious Metal:Gold-Gold

Speed: 250-500RPM/1000-3000RPM

Protection: IP54/IP68

Lead Wire: TF Awg26,Awg22,Awg16

Housing Material: Aluminium Alloy

Circuits: 2-36

Informazioni di base

Model Number: JSR-TH110 Series

Termini di pagamento e spedizione

Packaging Details: Gift box or custom packing

Descrizione di prodotto

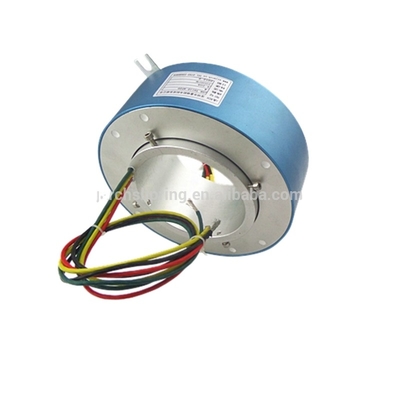

Shenzhen JARCH Electromechanical Through Bore Slip Ring 110mm,14 circuits, 20A Slip Ring

Name: Precious metal: Gold-gold Shenzhen JARCH electromechanical through bored slip ring 110mm, 14 circuits, 20A slip ring
Brand: Precious metal: Gold-gold Shenzhen JARCH electromechanical through bored slip ring 110mm, 14 circuits, 20A slip ring
SKU: JSR-TH110 Series
Price: 400.00 USD
Availability: InStock
Rating: 4.6 (108 reviews)

Product Description

Shenzhen JARCH Electromechanical Through Bore Slip Ring 110mm,14 circuits, 20A Slip Ring

JARCH TH Series through bore slip rings are ideally suited for electric slip ring applications where signals and power need to be transferred, and a through hole is required to pass either a shaft or other feed through.

The TH110 uses JARCH's fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle, low contact force and low contact wear. It provides an economical, readily available solution when a compact through-bore configuration is required. This unit provides a 6.0mm through-bore for routing hydraulic or pneumatic lines. The 2~5 amps /circuit are available in 1-24 ring.

Shenzhen JARCH Electromechanical Through Bore Slip Ring 110mm,14 circuits, 20A Slip Ring

Benefits

Shenzhen JARCH Electromechanical Through Bore Slip Ring 110mm,14 circuits, 20A Slip Ring

1. Designed for through bore hydraulic or pneumatic rotating shaft installation
2. Uses fiber brush technology which offers several advantages over conventional slip ring contacts including multiple points of contact per brush bundle
3. Standard, off-the-shelf
4. Gold plated ring and Gold alloy brush
5. Support power,signals transmitting
6. Rings combination is available

Shenzhen JARCH Electromechanical Through Bore Slip Ring 110mm,14 circuits, 20A Slip Ring

Installation Instructions:Flange Mounted

Dimension L To Be Advised When Ring And Current Details Are Options . Please Contact JARCH Technical Department,1000RPM M5 Connections Hybrid Slip Rings For Rotary Table or Industrial Machinery

Applications:

• Exhibit/display equipment

• Packaging / wrapping machinery

• Semiconductor handling systems

• Industrial machinery

• rotary index tables

• Process control equipment

• Heavy equipment turrets or cable reels

• Emergency lighting, robotics Palletizing machines, Option

• Medical equipment | rotary sensors, emergency lighting, robotics

• Miniature cable reels

Precious metal: Gold-gold Shenzhen JARCH electromechanical through bored slip ring 110mm, 14 circuits, 20A slip ring
