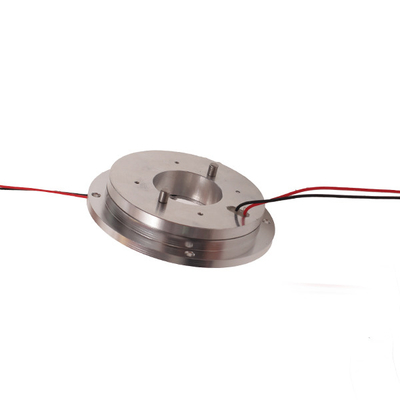

Pancake Slip Ring Through Bored Pancake Slip Ring, 2 Channel 2A Via 30mm, For Rotary Table

Bargain Price Only in Alibaba

Industrial slip ring Description

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot. LPK series slip ring is divided into 2 kinds: separate pancake slip ring LPKS and LPK stand-alone pancake slip ring.

The LPK030-0204 pin connection slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPK030-0204 unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Industrial slip ring Features

• High Rotating Speed
• Unfailing contact, light figure
• Extremely low physical noise
• Transmitting power and signal in 360° rotation
• No interference or connection drop
• Rapid delivery

Industrial slip ring Custom solution:

• Ready-made photoelectric encoder
• Optional solid and hollow shafts
• Other Solutions

Specification

Industrial slip ring Main Application

• Electric devices
• CT machine
• Mini robots
• LED industry
• Mini-type devices

Outline Drawing

Industrial slip ringProduct Display

Company Introduction

JINPAT Electronics, founded since 1996, is a leading manufacturer of slip rings, who has been committed to developing and manufacturing a large variety of industrial slip rings applied to many fields. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary Joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring are off-the-shelf units. Besides of these, customization is supported to cater to different application in that electrical rotary joints can be designed exclusively for Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth. All the products have been secured by our quality management system, certificated by the IS09001:2008/ ISO14001:2015.
