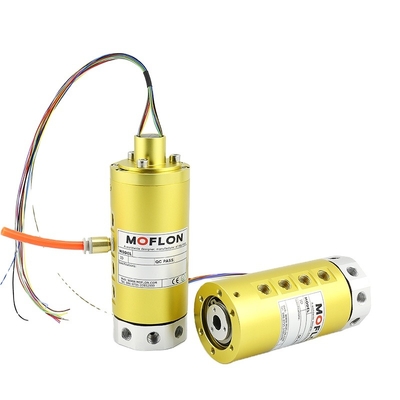

Name: All MK81 MK81 Alloy Series 8 Passes G1/8” Gas/Vacuum + 0~96 Circuits 1~24 Passes Gas/Vacuum+ Optional Electric Slip Rings
Brand: All MK81 MK81 Alloy Series 8 Passes G1/8” Gas/Vacuum + 0~96 Circuits 1~24 Passes Gas/Vacuum+ Optional Electric Slip Rings
SKU: MK81
Rating: 4.7 (121 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: MK81

Product name: MK81

Total passages: 4 passages air(Port size G1/8")

Working Life: 10 million revolutions

Pressure: Max.1 Mpa

Voltage: 0-120VDC/VAC

Rotating Speed: max 250RPM

Working Temperature: -30â„ƒ~80â„ƒ

Material: All Alloy

Protect Grade: IP51

Torque: 0.8N.m

Informazioni di base

Model Number: MK81

Termini di pagamento e spedizione

Packaging Details: paper carton or wooden box

Supply Ability: 1000 Piece/Pieces per Day

Descrizione di prodotto

Why Choose Us

Welcome to Shenzhen Moflon Technology Co., Ltd.

Intuitive, Innovative, Slip Ring Solutions Offer

An industry leading manufacturer supplying slip rings and rotary unions to companies, contractors, and other end-users.

Here at MOFLON, we have the privilege to work with and provide high perforamce slip ring solutions to some of the largest and most successful companies in the all kinds of Industry.

Let the team at Moflon prove their value in the successful launch of your next critical project.

About MOFLON

With over 30 years manufacturing and 15 exporting experience, our experienced engineers, production and QA QC team effectively ensure the advanced and practical products.

Work With Moflon, Work With Confidence Knowing Our Reputation

Our Advantage:

Products Description

MK Series Pneumatic Rotary Union （Pneumatic-Electric Hybrid)

MOFLON Pneumatic & Electric Rotary Union is specially designed for industrial automation equipment applications, which can prevent tubes winding problem well, provide 1~24 pneumatic passages and 2~128 wires power or signals.

The main features:

* Light weight, compact size, and low torque.
* Transmitting gas, vacuum on 360° rotating，can combine with electrical power, signal and/or data transfer.
* Support 1/2/3/4/5/6/8/10/12/16/24 Pneumatic passages.
* Support 1~128 wires electrical power/signal.
* Standard connection size G1/8", G3/8" and so on.
* Different pipe size for gas can be customized.
* Can transmit compressed air, vacuum, steam and other media.
* High speed and high voltage can be customized.

Part List
Mk Series Parts# List
Part#	Passages	Connection Size	Pressure
MK11A	1 in 1 out	G1/8"	1MPa, Vacuum
MK12A	1 in 1 out	G1/4"	1MPa, Vacuum
MK13A	1 in 1 out	G3/8"	1MPa, Vacuum
MK14A	1 in 1 out	G1/2"	1MPa, Vacuum
MK series - G1/8" connection size parts list
Model	Passages	Connection Size	Adaptive Tube	Circuit Number(power/signal(2A)
MK21	2 passages	G1/8"	6~8mm	Note:Pure pneumatic rotary union
MK21-XXX	2 passages	G1/8"	6~8mm	2~128 circuits electric
MK41	4 passages	G1/8"	6~8mm	Note:Pure pneumatic rotary union
MK41-XXX	4 passages	G1/8"	6~8mm	2~128 circuits electric
MK81	8 passages	G1/8"	6~8mm	Note:Pure pneumatic rotary union
MK81-XXX	8 passages	G1/8"	6~8mm	2~128 circuits electric
MK121	12 passages	G1/8"	6~8mm	Note:Pure pneumatic rotary union
MK121-XXX	12 passages	G1/8"	6~8mm	2~128 circuits electric
MK241	24 passages	G1/8"	6~8mm	Note:Pure pneumatic rotary union
MK241-XXX	24 passages	G1/8"	6~8mm	2~128 circuits electric
MK series - G3/8" connection size parts list
Model	Passages	Connection Size	Adaptive Tube	Circuit Number(power/signal(2A)
MK23	2 passages	G3/8"	10~12mm	Note:Pure pneumatic rotary union
MK23-XXX	2 passages	G3/8"	10~12mm	2~128 circuits electric
MK43	4 passages	G3/8"	10~12mm	Note:Pure pneumatic rotary union
MK43+XXX	4 passages	G3/8"	10~12mm	2~128 circuits electric
MK83	8 passages	G3/8"	10~12mm	Note:Pure pneumatic rotary union
MK83+XXX	8 passages	G3/8"	10~12mm	2~128 circuits electric
MK123	12 passages	G3/8"	10~12mm	Note:Pure pneumatic rotary union
MK123+XXX	12 passages	G3/8"	10~12mm	2~128 circuits electric

MK81 Series 8 Passages G1/8" Gas/Vacuum + 0~96 Circuits

MK81 series is 8 passages Pneumatic Rotary Union(Can combine electric wires), with connection size G1/8", compact size, light weight, low torqure, Also optional for transmitting power line, signal line, industrial bus, control line, Electromagnetic valve, induction line, etc.; Standard installation is flange mounting.
Media Types: Compress Air/Gas, vacuum;Can combine 2~96 circuits(2A),can also use pneumatic part,without circuits.
Media Types: compressed Air/Gas, vacuum, etc.

MOFLON Strength

How a high-quality lever slip ring supplied by Moflon

A well-known manufacturer incl. R&D/Production/Sales, with 7,000㎡ own factory and over 300 employees. Main staffs have over 10 years of related technical experiences

R & D/Production/Quality/Innovation/Service

Since founded. We believe quality and innovation are the life of our enterprise. We pay high attention to R&D, Raw Materials, Production, QC and After Sales Service for providing good products and services.

R & D

Moflon has a strong R & D team with 20 engineers over 10 experiences in this industry, have successfully developed more than 10,000 projects .

Production Capability

We have our own plastic injection factory and machining center, all the critical components made in-house, there are more than assemlby lines in our factory , which guarantee raw material internal control and the fast supply for your desired silp ring.

QA & QC System

There are more 15 steps QC process for your each slip rings in here.

Moflon is the only chinese comapny with level-5 slip ring testing laboratary.

Application & Project

Service Process

Whatever Your Challengs, We Should Talk.

Success in project using slip ring technology means overcoming challenges in every area of your business. Challenges in design, production, cost control, delivery—the list goes on.

Moflon has been helping customers face their most pressing slip ring challenges for over 30 years. And we’ve revolutionized virtually every aspect of how high perfomance slip rings are designed, developed, and produced.

We can help you achieve improved performance while reducing your overall costs

Exhibition & Customer

Packaging & Shipment

FAQ

^{How to customize the slip rings?}

1. What kind of media do you wanna to transmit?
A: Electricity, gas, Ethernet, fiber optic or hybrid slip rings.

2. For electricity, the details should be provided as below:
a. Total wires? The max current of each wire?
b. How many circuits for signal? The frequency and signal type?
c. Whether the signal is sensitive, if sensitive, does it need shielded?

3. For gas or liquid, the details should be provided as below:
a. What's gas do you need to transmit? Is air?
b. How much pressure?
c. What's size of each port? is G1/4"?
d. What is the maximum torque of slip ring that you can accept?
e. How to install? shaft mounting? flange mounting? end of shaft mounting?

4. For Ethernet, the details should be provided as below:
a. 1000M or 100M?
b. Total wires? The max current of each wire?
c. How many circuits for signal? The frequency and signal type?
d. Whether the signal is sensitive, if sensitive, does it need shielded?

5. For fiber optic, the details should be provided as below:
a. Total wires?
b. Connector type?
c. Type of fiber optic?
d. If need electricity or signals, please answer the Q1.

6. What's the rotating speed and how long does it work continuously per day?

7. May i know the application area(working environment)of the slip ring first?
