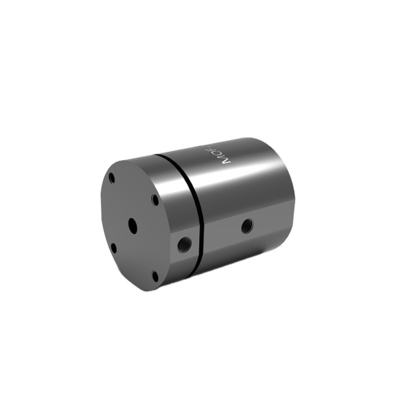

Aluminum Alloy/Steel MOFLON 2 Passes Compact Rotary Union General Purpose Rotary Union Compact Multifunctional Slip Ring Swivel Fluid Slip Ring

1 Piece
MOQ
Aluminum Alloy/Steel MOFLON 2 Passes Compact Rotary Union General Purpose Rotary Union Compact Multifunctional Slip Ring Swivel Fluid Slip Ring
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: MCGP21
Total passages: 2 passages
Working Life: 20 million revolutions
Port size: G1/8" G1/4" G3/8"
Pressure: Max 50 Mpa
Media Type: Air/Gas,Vacuum,Chemical,DI/Tap Water,Oil,etc
Rotating Speed: Max 150RPM
Working Temperature: -30℃~80℃
Material: Aluminum Alloy/Steel
Protect Grade: IP51
Torque: Related to the interfece size, see selection table
Informazioni di base
Model Number: MCGP21
Termini di pagamento e spedizione
Packaging Details: Standard packing
Descrizione di prodotto
Why Choose Us
Welcome to Shenzhen Moflon Technology Co., Ltd.

Intuitive, Innovative, Slip Ring Solutions Offer

An industry leading manufacturer supplying slip rings and rotary unions to companies, contractors, and other end-users.

Here at MOFLON, we have the privilege to work with and provide high perforamce slip ring solutions to some of the largest and most successful companies in the all kinds of Industry.

Let the team at Moflon prove their value in the successful launch of your next critical project.
About MOFLON
With over 30 years manufacturing and 15 exporting experience, our experienced engineers, production and QA QC team effectively ensure the advanced and practical products.

Work With Moflon, Work With Confidence Knowing Our Reputation

Our Advantage:
Products Description

MCGP Series 2~24 Passages Compact General Purpose Rotary Unions.

Much more compact size than MGP series. • MCGP series rotary joints have 2,4,6,8,12,16 and 24 passages as standard specification. • These rotary joints have a wide range of pressures and are designed for applications with limited space requirements. • Features include special seals, suitable for up to 7,500 PSI can simultaneously transport different types of media. All MCGP series models are equipped with threaded connections on both sides of the shaft and housing. Models are also available With optional shaft O-rings for face/flush mounting (must be specified when ordering).
MCGP List
MCGP compact rotaty joint Options
Model
Passages
Port size
Pressure
MCGP21
2 passages
G1/8"
0-50MPa
MCGP41
4 passages
G1/8"
0-50MPa
MCGP61
6 passages
G1/8"
0-50MPa
MCGP81
8 passages
G1/8"
0-50MPa
MCGP121
12 passages
G1/8"
0-50MPa
MCGP161
16 passages
G1/8"
0-50MPa
MCGP241
24 passages
G1/8"
0-50MPa

MCGP Series 2~24 Passages Compact General Purpose Rotary Unions.

Much more compact size than MGP series. • MCGP series rotary joints have 2,4,6,8,12,16 and 24 passages as standard specification. • These rotary joints have a wide range of pressures and are designed for applications with limited space requirements. • Features include special seals, suitable for up to 7,500 PSI can simultaneously transport different types of media. All MCGP series models are equipped with threaded connections on both sides of the shaft and housing. Models are also available With optional shaft O-rings for face/flush mounting (must be specified when ordering).
MOFLON Strength

How a high-quality lever slip ring supplied by Moflon

A well-known manufacturer incl. R&D/Production/Sales, with 7,000㎡ own factory and over 300 employees. Main staffs have over 10 years of related technical experiences

R & D/Production/Quality/Innovation/Service

Since founded. We believe quality and innovation are the life of our enterprise. We pay high attention to R&D, Raw Materials, Production, QC and After Sales Service for providing good products and services.
R & D
Moflon has a strong R & D team with 20 engineers over 10 experiences in this industry, have successfully developed more than 10,000 projects .
Production Capability
We have our own plastic injection factory and machining center, all the critical components made in-house, there are more than assemlby lines in our factory , which guarantee raw material internal control and the fast supply for your desired silp ring.
QA & QC System
There are more 15 steps QC process for your each slip rings in here.
Moflon is the only chinese comapny with level-5 slip ring testing laboratary.
Application & Project
Service Process
Whatever Your Challengs, We Should Talk.
Success in project using slip ring technology means overcoming challenges in every area of your business. Challenges in design, production, cost control, delivery—the list goes on.
Moflon has been helping customers face their most pressing slip ring challenges for over 30 years. And we’ve revolutionized virtually every aspect of how high perfomance slip rings are designed, developed, and produced.
We can help you achieve improved performance while reducing your overall costs
Exhibition & Customer
Packaging & Shipment
FAQ
How to customize the slip rings?
1. What kind of media do you wanna to transmit?
A: Electricity, gas, Ethernet, fiber optic or hybrid slip rings.

2. For electricity, the details should be provided as below:
a. Total wires? The max current of each wire?
b. How many circuits for signal? The frequency and signal type?
c. Whether the signal is sensitive, if sensitive, does it need shielded?

3. For gas or liquid, the details should be provided as below:
a. What's gas do you need to transmit? Is air?
b. How much pressure?
c. What's size of each port? is G1/4"?
d. What is the maximum torque of slip ring that you can accept?
e. How to install? shaft mounting? flange mounting? end of shaft mounting?

4. For Ethernet, the details should be provided as below:
a. 1000M or 100M?
b. Total wires? The max current of each wire?
c. How many circuits for signal? The frequency and signal type?
d. Whether the signal is sensitive, if sensitive, does it need shielded?

5. For fiber optic, the details should be provided as below:
a. Total wires?
b. Connector type?
c. Type of fiber optic?
d. If need electricity or signals, please answer the Q1.

6. What's the rotating speed and how long does it work continuously per day?

7. May i know the application area(working environment)of the slip ring first?
