Flat pancake slip ring slip rings identification 14 mm 360 degree continuous rotation for transmitting power or data signals

Description

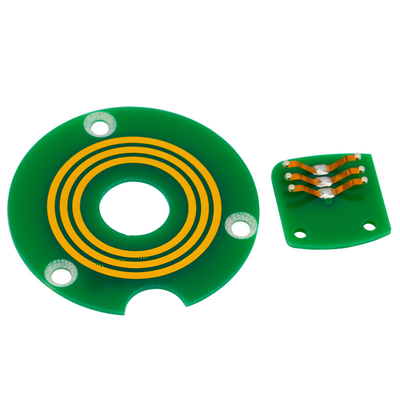

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot. LPK series slip ring is divided into 2 kinds: separate pancake slip ring LPKS and LPK stand-alone pancake slip ring.

The LPKS014-0302 pin connection slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPKS014-0302 unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

Features

• High Rotating Speed
• Unfailing contact, light figure
• Extremely low physical noise
• Transmitting power and signal in 360° rotation
• No interference or connection drop
• Rapid delivery

Custom solution:

• Ready-made photoelectric encoder
• Optional solid and hollow shafts
• Other Solutions

Specification

Outline Drawing

Main Application

• Electric devices
• CT machine
• Mini robots
• LED industry
• Mini-type devices

Product Display

Company Introduction

JINPAT Electronics, founded since 1996, is a leading manufacturer of slip rings, who has been committed to developing and manufacturing a large variety of industrial slip rings applied to many fields. Typical products like Capsule Slip Ring, Through-bore Slip Ring, Large-current Slip Ring, Coax Rotary Joint, Fiber Optic Slip Ring, Separate Slip Ring, Pin Slip Ring are off-the-shelf units. Besides of these, customization is supported to cater to different application in that electrical rotary joints can be designed exclusively for Ethernet, USB, HDMI, Sensor, CAN Bus, Thermocouple, RS232, RS422 and so forth. All the products have been secured by our quality management system, certificated by the IS09001:2008/ ISO14001:2015.
