Cotton Candy Machine Accessories SRS 15*30*35 Cotton Candy Machine Accessories With Electric Slip Ring Swivel Wire 2-Ring Joint

1 Set
MOQ
$12.50(1 - 49 Sets) $10.10(50 - 99 Sets) $7.00(>=100 Sets)
prezzo
Cotton Candy Machine Accessories SRS 15*30*35 Cotton Candy Machine Accessories With Electric Slip Ring Swivel Wire 2-Ring Joint
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: SRS 15mm*30mm*35mm-2
Type: Carbon Brush Slip Ring
Product name: SRS 15mm*30mm*35mm Slip Ring
Product weight: 0.101
Material: Copper
Outer diameter: 30mm
Inside diameter: 15mm
Number of rings: 2
Dimension: 15mm*30mm*35mm
Color: Blue
Shipment ways: by sea, by air
Application: Cotton Candy Machine Accessories
Informazioni di base
Model Number: SRS 15mm*30mm*35mm-2
Termini di pagamento e spedizione
Packaging Details: Put the items together in one piece and pack them in cartons
Descrizione di prodotto
Recommend Products
Product Description

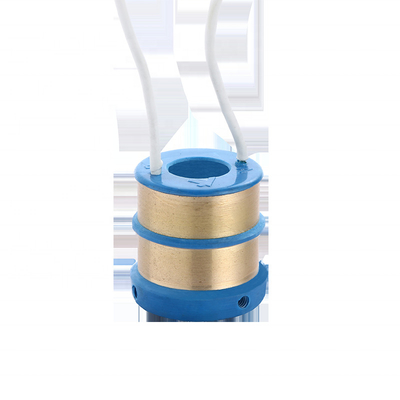

SRS 15mm*30mm*35mm-2 ID15mm,OD30mm,Height35mm

The SRS carbon brush slip ring is a 360-degree contact between the carbon brush and the slip ring, and it can be used in any electromechanical system that requires continuous rotation while transmitting power and signals from a fixed position to a rotating position. Slip rings can improve system performance and simplify system structure.
Product Paramenters
                                                                          Electrical Data
Value
Power
Signal
Working Life
10 million revolutions
Rated Voltage
0~240VAC/VDC
0~240VAC/VDC
Insulation Resistance
≥300MΩ/300VDC
≥300MΩ/300VDC
Wire Specification
Silver-plated Teflon
Silver-plated Teflon
Wire Length
Standard 300mm
Dielectric Strength
300VAC@50Hz,60s
Dynamic Resistance Change Value
0.01Ω
Mechanical Data
Value
Working Speed
150 rpm
Working Temperature
-30℃~80℃
Operating Humidity
0~85% RH
Contact Material
Gold/Gold
Shell Material
Engineering Plastics
Rotating Torque
0.05N.m+0.02N.m/6 ring
Protect Grade
IP51
Installation method

Features and Advantages

Good conductivity and long service life. When the brush is running, it has good sliding contact, it is not overheated, no noise, and low loss. During operation, the surface of the slip ring is formed quickly, evenly, moderately and stably. The pressure of each carbon brush is uniform and stable, and the structure guarantees the stability of the carbon brush and the stable contact. When the slip ring works, it transmits current and signal more stably.
Customize
Certifications
Companies and exhibitions
Packing & Delivery
FAQ
PAYMENT METHOD
We accept T/T, Paypal, Western union, L/C. Since you made the payment successfully, you can send us the Reference NO or MTCN.

TRANSACTION PROCESS
Quotation→Price confirm→Sign a contract→Mass production→Delivery.
For more details, please contact us,We offer you professional service in fluent English.
Any inquiries will be replied within 24 hours.

OEM Available

WARRANTY One year

QUALITY ASSURANCE
we have 100% test before delivery.
Strong production capacity and strictly quality contol system;

DELIVERY
Standard products:1-3 days
Simple customized products:3-5 days
Complex customized porducts:10-20 days
The specific delivery time depends on the items and the quantity of your order.

MOQ=1pcs
We are pleased to send you samples to test the quality and performance.we are confident that once you get it in your hand,you will be very satisfied.Moreover,with our excellent service and competitive price,we believe that we will be your first choice for slip ring.

SHIPMENT METHOD:by Express,by air,by sea,by train.Normally we checked and compare, then provide customer the most proper shipment method.

PACKAGE Carton Package ,Inner Package: Bubble PVC Bag.
Products can also be packaged according to customers' needs.

LOADING PORT Shanghai or Ningbo Port
