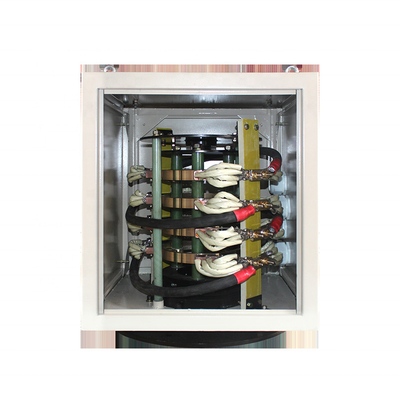

Customized Rotary Electric Slip Ring Collector Customized Cabinet Type Center Slip Ring

1 Piece
MOQ
$600.00(>=1 Pieces)
prezzo
Customized Rotary Electric Slip Ring Collector Customized Cabinet Type Center Slip Ring
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: Center Collector
Type: Customized Slip Ring
Product name: Center Collector Customized Slip Ring
Material: Customized Slip Ring
Current: UP TO1500A
Certificazione: ISO9001 CE
Speed: High up to 5,000 rpm
Temperature: High up to 400℃
Channels: Multi-channel Slip Ring
Voltage: from microvolts up to 3KV
Working life: up to 200,000,000cycles
SHIPMENT WAYS: Air freight, sea freight, express
Informazioni di base
Certificazione: ISO9001 CE
Model Number: Center Collector
Termini di pagamento e spedizione
Packaging Details: carton package for High Temperature Slip Ring
Supply Ability: 2000 Piece/Pieces per Week High Temperature Slip Ring
Descrizione di prodotto
Recommend Products
Product Description

Center Slip Ring Carbon Brush Conductive Slip Ring

The central collector is also called the central collector ring, which is widely used in the slewing mechanism of port machinery, water conservancy machinery, mining, metallurgy and construction machinery to complete the continuous transmission of current signals from fixed equipment to rotating parts.

Custom Scope

Number of rings:2-300 rings
Current:Milliampere to Kiloampere
Inside Diameter:According to customer needs
Protection Level:IP51~IP68

Installation and Maintenance

The central collector should be installed vertically; Regularly check the wear of the carbon brushes, remove the carbon powder and replace the carbon brushes; Keep it dry, and proper drying treatment should be done when restarting after deactivation.

Features and Advantages

◆ Convenient installation and maintenance ◆ High concentricity, strong anti-tilt ability ◆ Large current and low temperature rise ◆ Strong signal anti-interference ability, maintenance-free ◆ High-voltage safety, stable insulation performance
◆ It can be integrated with optical fiber, radio frequency, liquid (gas) rotary joint ◆ Heat dehumidification device, heat sink,
etc. can be attached
◆ Strong environmental adaptability, high and low temperature, vibration, shock, conditions such as salt spray, damp and heat can be met
Application Field
Product Paramenters
Electrical Data
Value
Rated Voltage
0~380VAC/240VDC
0~240VAC/VDC
Insulation Resistance
≥500MΩ/500VDC
≥300MΩ/300VDC
Wire Specification
 AWG20#Teflon
 AWG30#Teflon
Dielectric Strength
800VAC@50Hz,60s
Mechanical Data
Value
Working Speed
0~250 rpm
Working Temperature
-20℃~80℃
Contact Material
4x12  J164Carbon brush
Shell Material
Plexiglass
Protect Grade
IP51
Certifications
Companies and Exhibitions
Delivery Logistics Options
FAQ
PAYMENT METHOD
We accept T/T, Paypal, Western union, L/C. Since you made the payment successfully, you can send us the Reference NO or MTCN.

TRANSACTION PROCESS
Quotation→Price confirm→Sign a contract→Mass production→Delivery.
For more details, please contact us,We offer you professional service in fluent English.
Any inquiries will be replied within 24 hours.

OEM Available

WARRANTY One year

QUALITY ASSURANCE
we have 100% test before delivery.
Strong production capacity and strictly quality contol system;

DELIVERY
Standard products:1-3 days
Simple customized products:3-5 days
Complex customized porducts:10-20 days
The specific delivery time depends on the items and the quantity of your order.

MOQ=1pcs
We are pleased to send you samples to test the quality and performance.we are confident that once you get it in your hand,you will be very satisfied.Moreover,with our excellent service and competitive price,we believe that we will be your first choice for slip ring.

SHIPMENT METHOD:by Express,by air,by sea,by train.Normally we checked and compare, then provide customer the most proper shipment method.

PACKAGE Carton Package ,Inner Package: Bubble PVC Bag. Products can also be packaged according to customers' needs.

LOADING PORT Shanghai or Ningbo Port
