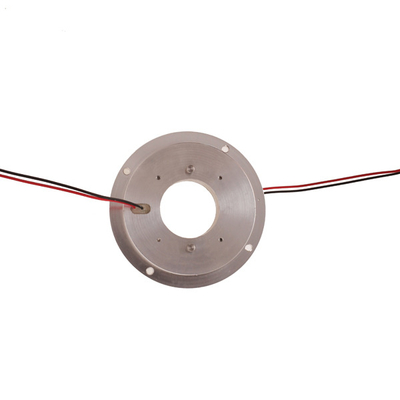

Name: Precious Metal Slip Ring 4 Circuits 2A Flat Hole Size 24mm , For Rotary Table Pancake Slip Rings
Brand: Precious Metal Slip Ring 4 Circuits 2A Flat Hole Size 24mm , For Rotary Table Pancake Slip Rings
SKU: LPK024-0207
Rating: 4.9 (184 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: LPK024-0207

Type: Electronic Accessories

Circuits: 4 circuits

Voltage Rating: 220VDC/AC or higher

Current Rating: 7A per circuit

Contact Material: Precious metal

Informazioni di base

Model Number: LPK024-0207

Termini di pagamento e spedizione

Descrizione di prodotto

Product Description

Bargain Price Only in Alibaba

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot.

Features

High Rotating Speed
Unfailing contact, light figure
Extremely low physical noise
Transmitting power and signal in 360° rotation
No interference or connection drop

Advantages

Ready-made photoelectric encoder
Optional solid and hollow shafts
Rapid delivery
Custom solution

Specification

Electronic & Electric		Mechanical
Circuits	2circuits * 7A	Working Speed	0~20rpm
Working Voltage	220VDC/AC	Contact	Nobel Metal
Dielectric Strength	≥300VDC@50Hz	Housing	Aluminum Alloy
Insulation	200MΩ@500VDC	Wire Length	Stator Wire:500mm Rotor Wire: 500mm
Environment		Remarks
Temperature	-40°C~+60°C	Installation Method	Stator is fixed on the customer's flange with screws
IP	IP51	Installation Method	Stator is fixed on the customer's flange with screws

Main Application

Packaging / wrapping machinery
Semiconductor handling systems
Industrial machinery
Exhibit Display machinery
Medical equipment
Rotary index tables
Process control equipment
