Name: Gold to Gold Pancake Slip Rings 5 circuits with Gold-Gold contact and a wide operating temperature range
Brand: Gold to Gold Pancake Slip Rings 5 circuits with Gold-Gold contact and a wide operating temperature range
SKU: LPKS025-0501
Rating: 4.8 (118 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: LPKS025-0501

Circuits: 5circuits

Voltage Rating: 24VAC/DC

Current Rating: 1A per circuit

Contact Material: Gold to gold

Informazioni di base

Model Number: LPKS025-0501

Termini di pagamento e spedizione

Descrizione di prodotto

Product Description

Bargain Price Only in Alibaba

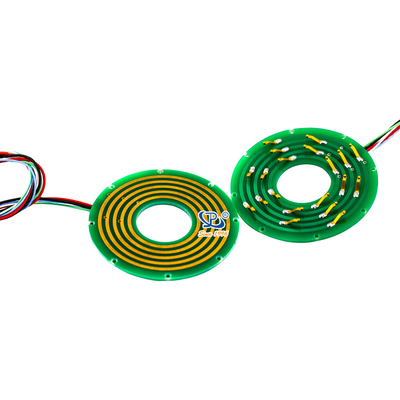

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot.

Features

High Rotating Speed
Unfailing contact, light figure
Extremely low physical noise
Transmitting power and signal in 360° rotation
No interference or connection drop

Advantages

Ready-made photoelectric encoder
Optional solid and hollow shafts
Rapid delivery
Custom solution

Specification

Circuits	4circuits * 10A 9circuits * signal	Working Speed	0~50rpm
Working Voltage	380VDC/AC	Contact	Gold to gold
Dielectric Strength	≥1000V@50Hz(Current) ≥500V@50Hz(signal)	Housing	Oxidation black of aluminum alloy
Insulation	500MΩ@500VDC(Current) 100MΩ@300VDC(signal)	Wire Length	Stator Wire:700mm Rotor Wire: 700mm
Environment		Remarks
Temperature	-20°C~+60°C	Installation Method	Stator is fixed on the spindle provided by customer
Humidity	≤60%RH
IP	IP54

Main Application

1. Packaging / wrapping machinery

2. Semiconductor handling systems

3. Industrial machinery

4. Exhibit Display machinery

5. Medical equipment

6. Rotary index tables

7. Process control equipment
