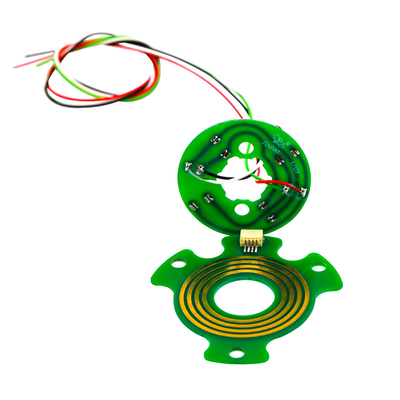

Name: Precious Metal Flat Pancake Slip Ring, 4 Circuits 2A Hole Size 13mm, For Robots
Brand: Precious Metal Flat Pancake Slip Ring, 4 Circuits 2A Hole Size 13mm, For Robots
SKU: LPKS013-0402
Rating: 4.8 (105 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: LPKS013-0402

Type: Electronic Accessories

Circuits: 4circuits

Voltage Rating: 20V

Current Rating: 2A per circuit

Contact Material: Precious metal

Informazioni di base

Model Number: LPKS013-0402

Termini di pagamento e spedizione

Descrizione di prodotto

Product Description

Bargain Price Only in Alibaba

LPK series is a group of Pancake Slip Rings manufactured by JINPAT with the thickness as small as 6mm. They are designed exclusively for rotation systems in which installing space is limited in height at vertical direction. Both copper ring and brush contact surround a central hole, which saves space a lot.

Features

High Rotating Speed
Unfailing contact, light figure
Extremely low physical noise
Transmitting power and signal in 360° rotation
No interference or connection drop

Advantages

Ready-made photoelectric encoder
Optional solid and hollow shafts
Rapid delivery
Custom solution

Specification

Electronic & Electric		Mechanical
Circuits	4circuits * 2A	Working Speed	0~60rpm
Circuits	4circuits * 2A	Inner Diameter	Φ13mm
Working Voltage	20V	Contact	Nobel Metal
Dielectric Strength	≥300V@50Hz	Housing	FR-4
Insulation	10MΩ@300VDC	Wire Length	Stator Wire:250mm Rotor Wire: /
Environment		Remarks
Temperature	+15°C~+45°C	Installation Method	PCB board is fixed on the customer's flange
Humidity	≤60%RH	Installation Method	PCB board is fixed on the customer's flange

Main Application

Packaging / wrapping machinery
Semiconductor handling systems
Industrial machinery
Exhibit Display machinery
Medical equipment
Rotary index tables
Process control equipment
