Casa /Prodotti/Collettori ad anello a corrente forte/Capsule Slip Ring Electrical Slip Ring, 18 Circuits 2A 240VAC 300rpm for Electrical Test Equipment

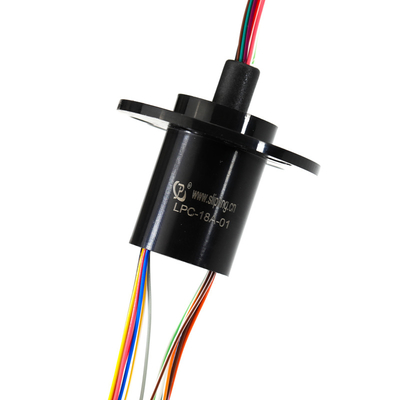

Capsule Slip Ring Electrical Slip Ring, 18 Circuits 2A 240VAC 300rpm for Electrical Test Equipment

1 Piece
MOQ
Capsule Slip Ring Electrical Slip Ring, 18 Circuits 2A 240VAC 300rpm for Electrical Test Equipment
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: LPC-18A-01
Type: Electronic Accessories
Circuit Number: 18
Current Rating: 2A
Voltage: 240VAC
Working Speed: 0~300 rpm
Working Temperature: -20~+60℃
Style: Capsule slip ring
Informazioni di base
Model Number: LPC-18A-01
Termini di pagamento e spedizione
Descrizione di prodotto

Bargain Price Only in Alibaba

Standard middle-sized Capsule Slip Ring is able to integrate over 125 circuits, with optional outer diameter from
22mm~54mm. This series adopts advanced military-standard surface processing techniques, and is highly precise, compact and easy to assemble. Gold-to-gold contact ensures low resistance and super long service life. It is able to integrate various signals: Ethernet, USB, RS, LVDS, CAN bus, Fire Wire, SDI and HDMI, etc.
Features:
  • Military standard surface processing
  • Precise
  • Gold-to-gold contact
  • Low resistance
  • Long service life
Options:
  • Rotating speed
  • Life span
  • Protection grade
  • Number of circuits
  • Current capacity
  • Size
  • Housing material
  • Mass produc-tion
Main applications:
  • High speed dome
  • Camera platform
  • Electrical testing equipment
  • Rotary table
  • Manufacturing and control equipment

Specification

Circuits 18
Current Rating 2A
Voltage 240VAC
Dielectric Strength ≥500V@50Hz between circuits
Insulation 100MΩ@500VDC
Electrical Noise ≤15mΩ
Working Speed 0~300 RPM
Contact Precious metal
Wire Size 28# silver plated copper UL, Teflon
Lead Wire Length Rotor:250mm; Stator:250mm
Working Temperature -20~+60℃
Humidity ≤60%RH
Protection Grade IP54

Outline Drawing

Product Display
