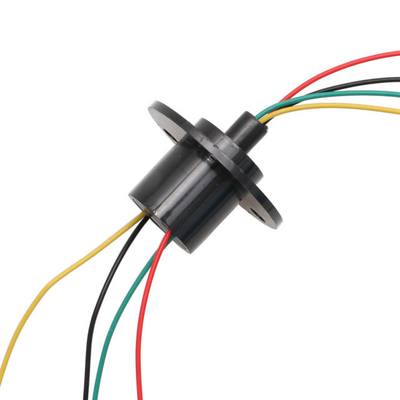

Name: Engineering Plastics Conductive Slip Ring OD 22mm 360 Degree Unlimited Rotation 4 Wire 5A High Current Electric Slip Ring Rotary Joint Connector
Brand: Engineering Plastics Conductive Slip Ring OD 22mm 360 Degree Unlimited Rotation 4 Wire 5A High Current Electric Slip Ring Rotary Joint Connector
SKU: Dia 22mm 4CH 5A
Rating: 4.9 (142 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: Dia 22mm 4CH 5A

Type: Electronic Accessories

Product name: Slipring

Material: Engineering plastics

Diameter: 22mm

Channel number: 4CH

Rated voltage: 220VAC/DC

Rated current: 5A

Contact material: Gold/Gold

Working life: â‰¥5 million rpm

Operating temperature: -20 â„ƒ ~ +60 â„ƒ

Informazioni di base

Model Number: Dia 22mm 4CH 5A

Termini di pagamento e spedizione

Descrizione di prodotto

Specification

item	value
Place of Origin	China
	Guangdong
Brand Name	Shuaichi
Model Number	Dia 22mm 4CH 5A
Type	Electronic Accessories
Product name	Slipring
Material	Engineering plastics
Diameter	22mm
Channel number	4CH
Rated voltage	220VAC/DC
Rated current	5A
Contact material	Gold/Gold
Working life	≥5 million rpm
Operating temperature	-20 ℃ ~ +60 ℃

360 Degree Unlimited Rotation Conductive Slipring OD 22mm 4 Wire 5A High Current Electric Slip Ring Rotary Joint Connector

Features: - Fully meet the 360 degree of unlimited rotation of the image and data transmission work small noise, long life, small rotation torque, smooth running dynamic resistance change value is extremely low, small volume, compact structure Specifications: - Diameter: 22mm - Channel number: 4CH - Rated current: 5A/channel - Speed: up to 200rpm - Rated voltage: 220VAC/DC - Operating temperature: -20 ℃ ~ +60 ℃ - Contact material: Gold/Gold - Wire length: standard 200mm - Compressive strength: between the two channels≥500V 50Hz - Insulation resistance: 1000MΩ/500VDC - Dynamic resistance fluctuation value: minimum 10mΩ - Shell material: Engineering plastics - Working life: ≥5 million rpm(depending on the working environment and speed) Description: - Wind power slip rings have good resistance to low temperature, high humidity, wind and sand, corrosion resistance, impact resistance, vibration resistance, stable performance and no maintenance. The service life can reach 10 million revolutions. - The slip ring is responsible for the power of the entire system in the wind power generation system. The control signal and data transmission function is a very critical component in the entire wind power system. Its precision, reliability and working life directly affect the performance of the wind power generation system. Package include: 1pcs x slipring

Product Description

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

1. who are we?
We are based in Guangdong, China, start from 2016,sell to Western Europe(42.00%),North America(28.00%),Domestic Market(10.00%),Northern Europe(6.00%),Southern Europe(6.00%),Eastern Asia(5.00%),South Asia(3.00%). There are total about null people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
slip ring
