Name: IP65 Aluminum Alloy Construction Machinery Slip Rings 36VDC Through Hole 14 Circuit, Crane Slip Ring
Brand: IP65 Aluminum Alloy Construction Machinery Slip Rings 36VDC Through Hole 14 Circuit, Crane Slip Ring
SKU: LPTS000-0330-1105
Rating: 4.8 (194 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: LPTS000-0330-1105

Type: Accessories

Number of circuits: 14CKT

Rotating speed: 0~100rpm

Housing material: Aluminum alloy

Protection Grade: 65

Informazioni di base

Model Number: LPTS000-0330-1105

Termini di pagamento e spedizione

Descrizione di prodotto

Product Description

Bargain Price Only in Alibaba

Construction Machinery
Model	Application area
LPTS000-0330-1105	50T crane truck

Advantages

Excellent water-proof performance, protection grade up to IP67, fits to work in outdoor environment
Multiple channels for power, general signals, throttle signal and CANBUS signal,
etc. Able to integrate encoder.
Meet the requirements of crane models with 12T~350T lifting capacity

Features

Simultaneous transmission of power and signal
Up-side-down installation,protection grade IP67
Maintenance-free

Electrical & Electroni		Mechanical		Enviromental
Number of circuits	14CKT	Rotating speed	0~100rpm	Temperature	-30°C~+70°C
Current	3×30A+9S+ 2×CANBUS	Contact material	Precious metal	Humidity	≤95%RH
Voltage	36VDC	Housing material	Aluminum alloy	Protection Grade	65
Dielectric strength	≥500VAC@50Hz	Wire type	4.0/0.75mm2FLRY-B /CANBUS	Others
Insulation resistance	≥500MΩ@500VDC	Wire length	Stator side:1.2 m Rotor side:3.3 m/ CANBUS4.3m	Life span	Can be customized

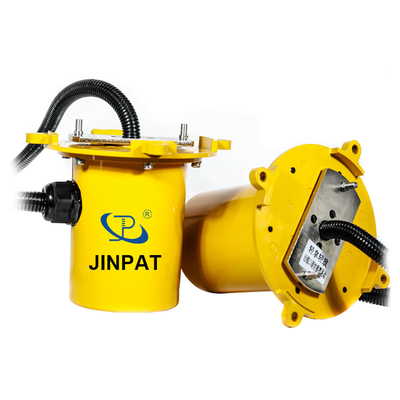

Product Image

Product outline drawing

JINPAT Electronics entered into slip ring field in 1996. It is a national high-tech enterprise

specializing in the research and development, manufacturing, and sales of slip rings. JINPAT

has a senior R&D team that consists of numerous engineers who have ever worked in multina

tional companies or famous insititutes, which are committed to the development and manu facturing of high-quality slip rings that improve system performance and prevent damage to the wires as they rotate. JINPAT Electronics has passed the ISO9001 quality management system certification, the

ISO14001 environmental management system certification, the UL, FCC, CE, RoHS, REACH, BV

classification society’s certification, the explosion-proof certification, and it has obtained 55 national patents. Keeping improving and innovating, JINPAT slip rings are not only reliable in performnace, long in lifespan, free in maintenance, but also with the features of high protection grade, anti-

explosion, anti-quake, anti-impact, high and low temperature resistance, high perssure resistance, low electrical noise and low loss of signal transmission. JINPAT slip rings have been widely used in the navy, army, air force and police force. Our products are also used in the security, industrial automation, power, instrumentation, aviation, transportation, construction, wind power, robotics, medical and other cutting-edge fields. JINPAT Electronics has a long-term relationship with many domestic and foreign industrial technology giants such as GE, Honeywell, CNOOC, BYD, Sany Heavy Industry, Zoomlion, SUZLON, AVIC, CASC, CASIC, CETC, CSIC, and South Surveying & Mapping. JINPAT is committed to a win-win outcome with its customers by providing quality products and services.
