Name: Taidacent Gold Plated/Silver Plated Rotating Ring Slip Ring Power Connector Large Current Wire Connector 2/4/6/8/12 Way Dining Table Contacts
Brand: Taidacent Gold Plated/Silver Plated Rotating Ring Slip Ring Power Connector Large Current Wire Connector 2/4/6/8/12 Way Dining Table Contacts
SKU: Slipringconductivering
Rating: 4.5 (144 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: Slipringconductivering

Material: Gold plated / silver plated ring

Informazioni di base

Model Number: Slipringconductivering

Termini di pagamento e spedizione

Packaging Details: Box package

Supply Ability: 2000 Piece/Pieces per Week

Descrizione di prodotto

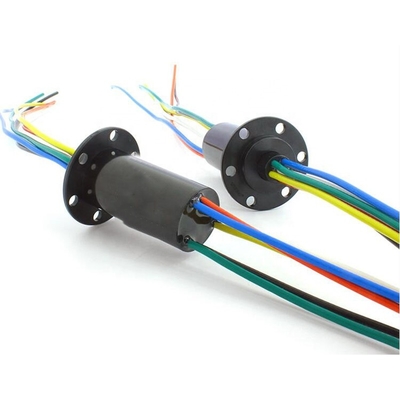

Taidacent Slip Ring Power Connector Large Current Rotating Wire Connector 2/4/6/8/12 Way Dining Table Slip Ring Contacts

Product Description

Feature

360 degree rotating high power + high current conductive slip ring Applicable to various high-power equipment such as various induction cookers and small wind turbines on the market. Number of lines: 2~56 channels Current: 2~120A Voltage: 0~600V Special engineering plastics High temperature resistance, corrosion resistance, oxidation resistance, hardness, wear resistance and pressure resistance

Customize parameter

1. Number of passages, current magnitude, voltage range, slip ring size, flange position, and installation method; 2. Combine transmission of video, USB, HDMI, optical fiber, radio frequency, Ethernet and other signals; 3. Combine the gas liquid medium. installation The rotating end and the stationary end are interchangeable

Note: We have 2 road 5A, 2 road 10A, 2 road 30A, 2 road 60A, 3 road 10A, 3 road 30A, 4 road 5A, 4 road 10A, 4 road 30A, 6 road 5A, 6 road 30A, 8 road 5A, 12 road 5A, 12 way 10A, 2 way 10A+4 way 2A, please conatct the customer service for the type you want.

Product Paramenters

Voltage range	0-240V (DC/AC can be used)	Speed range	0~250RPM
Shell material	engineering plastic	Contact material	precious metal
Insulation resistance	500MΩ@250VDC/AC	Ring material	gold plating on copper surface, AU≥30U, R
Working temperature	-40°C~80°C	Torque	<0.06N.m
Working humidity	0～85%RH	Contact material precious metal	gold-gold
Electrical noise	<10mΩ@6VDC, 50mA, 5RPM	Insulation resistance	≥300MQ/300VDC
Withstand voltage	800VDC@50Hz, 10s	Rotational torque	0.05N.m+0.01N.m/6
Insulation strength	300VAC@50Hz, 60s	Wire length	150~250mm

Details Images
