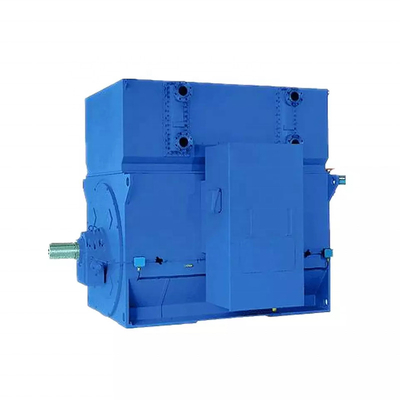

Name: Totally Enclosed YRKS high voltage slip ring HV Motor 6000V 10000V 560KW 710kw 2240kw 1480RPM electric Ac motor with factory price
Brand: Totally Enclosed YRKS high voltage slip ring HV Motor 6000V 10000V 560KW 710kw 2240kw 1480RPM electric Ac motor with factory price
SKU: YRKS
Rating: 4.6 (132 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Warranty: Other

Model Number: YRKS

Type: Asynchronous Motor

Frequency: 50/60HZ

Phase: Three-phase

Protect Feature: Totally Enclosed

AC Voltage: 10000v

Efficiency: Ie 3

Motor Center Height: H355-1120(mm)

Protection Degree: IP23/IP44/IP54/IP55

Cooling Method: IC01/IC81W/IC611/IC616

Insulation Class: F Class

Duty: S1 (continuous)

Speed: 500/600/750/1000/1500/3000rpm

Mounting Type: IMB3

Function: windlass, press machines, drawing machines

Informazioni di base

Model Number: YRKS

Termini di pagamento e spedizione

Packaging Details: Export wooden package in individual plywood box, customized as your request.

Supply Ability: 600 Set/Sets per Month

Descrizione di prodotto

YRKS Series Three Phase Asynchronous Motor

Product Description

YRKS series motors center height	H355-H630
Output	185KW-2500KW
pole	2, 4, 6
degree of protection	IP44/54
cooling method	ICW81A

Discription:

YRKS-series (3kv, 6kv, 10kV) motor, is of wound rotor three phase asynchronous motor. Which complies with JB/T7594-1994 and JB/T10314.1-2002. The protection degree of the motor is of IP23 and the cooling method is of ICW81A.

The motor has such advantage as high efficiency, energy-saving low noise, low vibration, light weight and reliable performance. They are easy for installation and maintenance.

This motor can generate larger starting torque at the state of relatively lower starting current. It used where the capacity of the feeder line is insufficient to start a squirrel cage motor or where the longer starting time and frequent starting are needed or where adjustment of speed is needed within a limited range such as windlass, press machines, drawing machines.

Type of meaning

Order Notice

1. Pls refer to the catalogue before ordering. If the types rating you need are not covered by our booklet, pls contact us. Should you have any specific needs, pls offer us clear and concrete proposal in advance.

2. Pls write clearly the type, output, voltage, speed, excitation, exciting voltage, duty-cycle, type of construction, Number of shaft-end, location of terminal box, direction of rotation, as well as the name and quantity of necessary accessories and spare parts, etc.

3. If the humid-tropical type required, pls mark TH behind the original type number.
