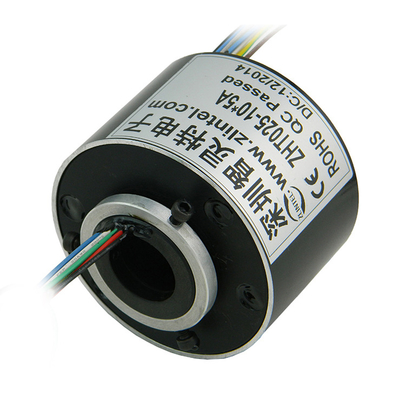

Precious Metal: Gold-Gold Hollow Slip Ring Hole Diameter 25mm 10 Circuits 5A Slip Ring For Pedestal Cranes Indexing /Rotary Tables Pneumatic Swivels

1 Piece
MOQ
Precious Metal: Gold-Gold Hollow Slip Ring Hole Diameter 25mm 10 Circuits 5A Slip Ring For Pedestal Cranes Indexing /Rotary Tables Pneumatic Swivels
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: ZHT025-10X5A
Type: Through Bore Slip Rings
Circuits: 10 rings 5A/ring
Voltage: 0~240 VDC/VAC
ID Size: 25.4mm
OD Size: 86MM
Contact Material: Precious Metal:gold-gold
Max Speed: 0~300RPM
IP grade: IP51
Length: 62.7mm
Housing Material: Aluminum alloy
Informazioni di base
Model Number: ZHT025-10X5A
Termini di pagamento e spedizione
Packaging Details: Packaging & Delivery Selling Units: Single item Single package size: 50X40X30 cm Single gross weight: 0.6 kg Package Type: paper carton or wooden box
Descrizione di prodotto

Why Choose Us
Welcome to Shenzhen Zlintel Electronic Technology Co., Ltd.
Provide you with intuitive and innovative rotary transmission solutions
An industry leading manufacturer supplying slip rings and rotary unions to companies, contractors, and
other end-users.

Here at Zlintel, we have the privilege to work with and provide high perforamce slip ring solutions to
some of the largest and most successful companies in the all kinds of Industry.

Let the team at Zlintel prove their value in the successful launch of your next critical project.
About ZLINTEL
With over 30 years manufacturing and 15 exporting experience, our experienced engineers,
production and QA QC team effectively ensure the advanced and practical product
Our Advantage:

Product Description



MT Series Through Hole slip Ring Main Features

Through hole slip ring also called hollow slip ring with centre hole. it mainly apply to the devices where
requires to transmit precise signal, weak current, large current, high voltage.
The main features:
* Advanced precious multi-point contact brush technology ensures reliable contact with low friction
* Metal housing for better protection * Integrated structure design, easy installation
* Hole size from 3mm to 300mm optional
* Standard item in stock
* Support combined power and signal transimtion
* Standard current: 0~20A,Standard voltage: 0~690VAC/VDC
* Circuits No.: 0~300 circuits optional;
* Customizations acceptable for circuits no. , current& voltage based on standard models;
                Serial Number
                           ID
                         OD
                  Length L(mm)
               ZHT025-10*5A
                           25
                     86
                        62.7





Total Circuits
10 rings 5A/ring
Working Life
20 million revolutions
Rated Voltage
0~240VAC/VDC
Rotating Speed
0~300RPM
Working Temperature
-40℃~80℃
Operating Humidity
0~85% RH
Contact Material
Precious Metal:gold-gold
Lead Wires
5A, AWG22#Teflon
Lead Length
Standard 300mm
Dielectric Strength
≥1000V@50Hz between circuits
Torque
0.02N.m;+0.01N.m/6ring
Res Noise
<0.01Ω
Protect Grade
IP51
Insulation Resistance
Power:≥1000MΩ/500VDC









ZLINTEL Strength





Production Capability
We have our own plastic injection factory and machining center, all the critical components made in-
house, there are more than assemlby lines in our factory , which guarantee raw material internal
control and the fast supply for your desired silp ring.


Product Uses




Service Process




Exhibition&Customer




Packaging & Shipping




FAQ
How to customize the slip rings?
1.Do you supply OEM and ODM ?

A: Yes, we provide OEM and ODM.

2. what's the working life of your slip rings

A:The standard type is 10 million revolutions, if you have higher demand,

we can provide you with higher revolutions

3.What data should we provide when we customize a slip ring

A:If you want to customize a slip ring, you need to provide:

 1.operatring speed(RPM)

 2.the type of installation

 3.outline size

 4.channels(the No. of single wire besides cable)

 5.rated voltage & current for power rings and signal rings

 6.the signal type and related parameters(very important)

 7.operating temperature h.IP(sealing requirements)

4.How long is your production lead time?

A:It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,

15 to 40 days for complex customized products.

5.What to do if the purchased samples are not compatible with our

products

A:We will provide suitable products according to your needs, and refund the cost of

samples youhave incurred after a certain number of ordersWe will provide suitable

products according to yourneeds, and refund the cost of samples you have incurred

after a certain number of orders.
