Radar Fiber Optics Rotary Joint Multi Channel Waveguide Rotary Joints

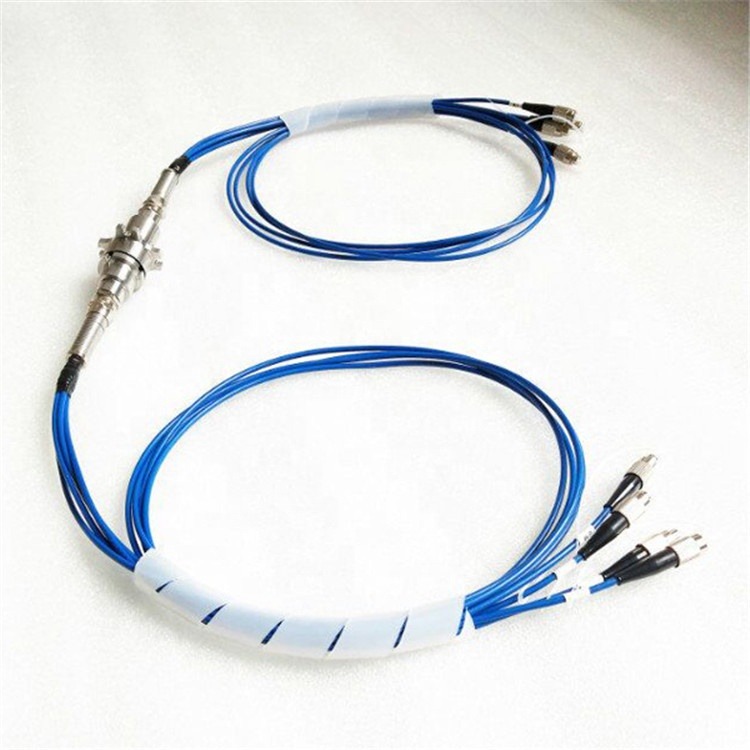

8 ways fiber optic rotary joint

Fiber Optic slip ring also called Fiber-Electric slip ring, Fiber Optic Rotary Joint. Adopt fiber to transmit signal, used to any devices to transmit electricity and Fiber signal when 360° rotating ,such as HD video transmission system, microwave communication, medical equipment, sensor signal measurement, radar and video monitoring system, etc. Specially suitable for some applications which requires to keep continous or intermittent rotating and transmit mass data from static side to rotation side, which can improve mechanical performance, simplify system operation and avoiding damages to fiber when rotating. Can be combined with the traditional electric slip ring to transmit power and high-speed data.

Product features:

Can transmit single or multi channels fiber optic signal;

Fiber connector : FC,SC,ST,SMA or LC (PC /APC),etc optional;

Can be combined to transmit power, control signal, micro-power signal of computer automotive control ;

Can be combined with the traditional electric slip ring to transmit power and high-speed data;

Non contact, no friction, long working life, >100 million revolutions (2-3 millions revolutions for signal channel model);

Safe and reliable, no electromagnetic interference long-distance transmission.

Our advantage:

More than 10 years experienced senior engineers in the industry and 12 people R&D team, provide more professional and reliable solutions for your rotating conduction problems.

More than 60 workers with several years experience in workshop production, skilled in operation and production, can better guarantee product quality.

High rotating accuracy, more stable performance and longer service life. The lifting material is precious metal + superhard gold plating, with small torque, stable operation and excellent transmission performance.

10 million revolutions of quality assurance, so that you have no worries to cooperate with us!

Application:

Between in undersea robot and control ship

Between in radar antenna and on-board signal processing system

With the chariot rotating tower car body console

Between in welding robot and console

Remote mechanical input and output devices and control

The photoelectric theodolite

The connection between the platform and spacecraft tracking

FAQ:

Q1: What technical data should be provided for our customized slip ring model.

A: If you want to customize the special slip ring model, you need provide details as below:

1.operatring speed(RPM)

2.the type of installation

3.outline size

4.channels(the No. of single wire besides cable)

5.rated voltage & current for power rings and signal rings

6.the signal type and related

parameters(very important)

7.operating temperature h.IP(sealing requirements)

Q2: How long is your production lead time?

A: It needs 7 to 15 days for standard products, 10 to 20 days for simple customized products,

15 to 40 days for complex customized products.

Q3: What's your delivery port?

A: Our delivery port is Jiujiang, China Mainland

Q4: How do you delivery our goods?

A: Usually small orders can be delivered by air, big orders can be delivered by sea. It can be negotiated before delivering.
