Name: Mini Electrical Slip Ring, 6 Circuits Extremely Low Current 1A Capsule Electrical Noise, For Camera Stabilizer
Brand: Mini Electrical Slip Ring, 6 Circuits Extremely Low Current 1A Capsule Electrical Noise, For Camera Stabilizer
SKU: LPM-06A
Rating: 5 (110 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: LPM-06A

Type: Electronic Accessories

Circuit Number: 6

Current Rating: 1A

Voltage: 240VAC

Working Speed: 0~300 rpm

Working Temperature: -20~+60â„ƒ

Style: Capsule slip ring

Informazioni di base

Model Number: LPM-06A

Termini di pagamento e spedizione

Descrizione di prodotto

Bargain Price Only in Alibaba

The LPM-06A miniature slip ring can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary part to a rotating part.

The LPM-06A unit is a standard, off-the-shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

LPM-06A Slip Ring Specification

Circuits	6
Current Rating	1A
Voltage	240VAC
Dielectric Strength	≥500V@50Hz between circuits
Insulation	100MΩ@500VDC
Electrical Noise	≤15mΩ
Working Speed	0~300 RPM
Contact	Precious metal
Working Temperature	-20~+60℃
Humidity	≤60%RH
Protection Grade	IP54

Main Application

Electric devices
Motor equipment
Industrial machinery
LED industry
Medical equipment
Process control equipment

LPM-06A Slip Ring Outline Drawing

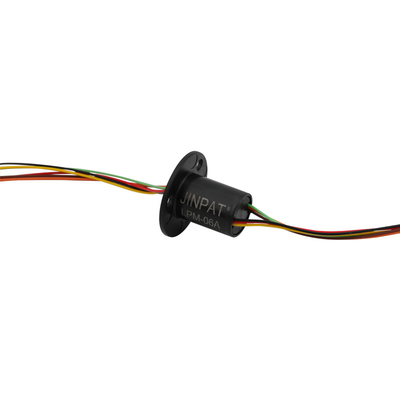

LPM-06A Slip Ring Product Display
