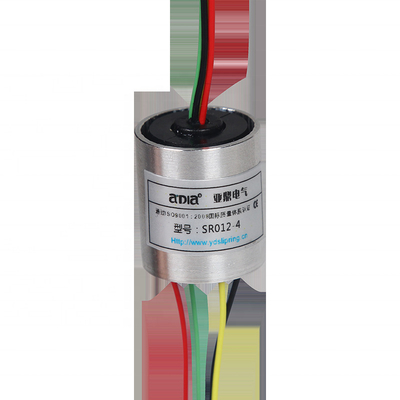

Over Ring Slip Ring YADING Fishing Rod Hook Slip Ring Is Used In High Quality Miniature Fishing Rods Capsule

1 Piece
MOQ
$4.80(1 - 49 Pieces) $4.30(50 - 499 Pieces) $3.90(500 - 999 Pieces) $3.20(>=1000 Pieces)
prezzo
Over Ring Slip Ring YADING Fishing Rod Hook Slip Ring Is Used In High Quality Miniature Fishing Rods Capsule
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: SR012-4
Type: Capsule Slip Ring, Capsule Slip Ring
Product name: SR012 Capsule Slip Ring
Contact material: Precious metals
Color: Silver White
Material: ABS plastic
OD: 12mm
Rated voltage: 0~240VAC/VDC
Protection level: IP51
Shipment ways: by sea, by air.
Application: On the fishing rod
Informazioni di base
Model Number: SR012-4
Termini di pagamento e spedizione
Packaging Details: Put the items together in one piece and pack them in cartons
Descrizione di prodotto
Recommend Products
Product Description

SR012-4 OD12mm，4 wires, Power(5A)/ring，Signal(2A)/ring

This slip ring can be used to transmit various signals such as current, weak signal, video, etc. It has the advantages of low torque and low consumption, and is mainly used in fields such as stage lights and unmanned aerial vehicles.
Model List
Model
Outer Diameter
Number Of Lines
Maximum Allowable Current Per Channel
SRC012
12.4mm
4,6,8,12,18
0.5A,1A,2A,5A,10A,15A
SRC015
15.5mm
2,6,12
0.5A,1A,2A,5A,10A,15A,20A
SRC018
18mm
4,6,8,12,18
0.5A,1A,2A,5A,10A,15A,20A
SRC022
22mm
2,3,4,5,6,12,18,24,36
2A,5A,10A,15A,20A,30A,35A
Note: The combination of N 2A current loops can be used as 1 N*2A current loop; for example: 2 loops of 2A can be used as 1 4A in combination. If you have special requirements, please come to consult.

Features and Advantages

Compact structure, flexible installation, high reliability, and long-term working time. High level of protection(IP68) for dusty and exposed slip ring working environments. Alloy brush structure, precious metal contact, excellent electrical conductivity, low signal transmission loss. High anti-vibration structure design, suitable for high vibration working environment. Special design for low temperature resistance, wide working temperature range: -55°C~+220°C. Designed with encoder, sensor, angled limit funciton conductive slip ring. Power up to 3000A, signal ring number and circuits connection way can be customized according to requirements. The total number of rings is within 18 channels, the delivery period is short, and the product consistency is high. Long product life, maintenance-free within 2 years.
Application Field
Product Paramenters
                                                                           Electrical Data
Value
Power
Signal
Working Life
10 million revolutions
Rated Voltage
0~240VAC/VDC
0~240VAC/VDC
Insulation Resistance
≥300MΩ/300VDC
≥300MΩ/300VDC
Wire Specification
 AWG30#Teflon
 AWG30#Teflon
Wire Length
Standard 300mm
Standard 300mm
Dielectric Strength
300VAC@50Hz，60s
Dynamic Resistance Change Value
<0.01Ω
Mechanical Data
Value
Working Speed
150 rpm
Working Temperature
-40℃~80℃
Operating Humidity
0~85% RH
Contact Material
Precious Metal
Shell Material
Engineering Plastics
Rotating Torque
0.05N.m+0.02N.m/6 ring
Protect Grade
IP51
Installation and Precautions

Installation Method

Fix the slip ring stator: insert the slip ring into the sleeve of the static part of the equipment, fix the flange with screws, or
fix the stator outlet. Fix the slip ring rotor: This series of slip ring has a small torque and only needs to be fixed at the
outlet of the rotor end. The sleeve can also be used to clamp the slip ring rotor to drive the slip ring to totate.

Matters Needing Attention

The slip ring should not be used for load bearing; the cables should not be stressed nor tensed. When installing the slip rings, the cables should be well protected. The slip rings should be used in dry, low dust envronment. If working environment is bad, mor protection meassures should.
Certifications
Companies and Exhibitions
Delivery Logistics Options
FAQ
PAYMENT METHOD
We accept T/T, Paypal, Western union, L/C. Since you made the payment successfully, you can send us the Reference NO or MTCN.

TRANSACTION PROCESS
Quotation→Price confirm→Sign a contract→Mass production→Delivery.
For more details, please contact us,We offer you professional service in fluent English.
Any inquiries will be replied within 24 hours.

OEM Available

WARRANTY One year

QUALITY ASSURANCE
we have 100% test before delivery.
Strong production capacity and strictly quality contol system;

DELIVERY
Standard products:1-3 days
Simple customized products:3-5 days
Complex customized porducts:10-20 days
The specific delivery time depends on the items and the quantity of your order.

MOQ=1pcs
We are pleased to send you samples to test the quality and performance.we are confident that once you get it in your hand,you will be very satisfied.Moreover,with our excellent service and competitive price,we believe that we will be your first choice for slip ring.

SHIPMENT METHOD:by Express,by air,by sea,by train.Normally we checked and compare, then provide customer the most proper shipment method.

PACKAGE Carton Package ,Inner Package: Bubble PVC Bag. Products can also be packaged according to customers' needs.

LOADING PORT Shanghai or Ningbo Port
