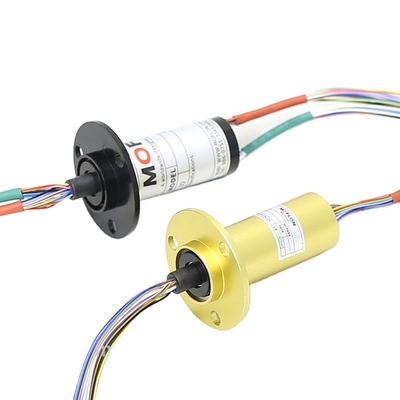

Precious metal: MC330 gold-gold compact capsule slip ring OD 22.00mm 18*2A

1 Piece
MOQ
Precious metal: MC330 gold-gold compact capsule slip ring OD 22.00mm 18*2A
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: MC330
Type: slip rings
Wires: 2-18
Voltage: 240 VDC/VAC
Operating Humidity: 0~85% RH
Contact Material: Precious Metal:gold-gold
Current: Signal(2A),Multiple 2A
Max speed: 250RPM
Lead wires: AWG#28
Protection grade: IP51
Torque: 0.05N.m+0.01/1ring
Lead Lengths: Standard 300mm
Informazioni di base
Model Number: MC330
Termini di pagamento e spedizione
Packaging Details: paper carton or wooden box
Descrizione di prodotto
Why Choose Us
Welcome to Shenzhen Moflon Technology Co., Ltd.

Intuitive, Innovative, Slip Ring Solutions Offer

An industry leading manufacturer supplying slip rings and rotary unions to companies, contractors, and other end-users.

Here at MOFLON, we have the privilege to work with and provide high perforamce slip ring solutions to some of the largest and most successful companies in the all kinds of Industry.

Let the team at Moflon prove their value in the successful launch of your next critical project.
About MOFLON
With over 30 years manufacturing and 15 exporting experience, our experienced engineers, production and QA QC team effectively ensure the advanced and practical products.

Work With Moflon, Work With Confidence Knowing Our Reputation

Our Advantage:
Products Description

MC330 Series OD 22mm, 2~18 rings

MC330 is standard capsule slip rings with gold-gold slip ring contacts,which ensured the stabilty of the signal transmission and working life, mainly used for civilian, commercial areas.

MC3309 is the high-end version corresponding to MC330, ultra-thick gold-plated,imported bearings, rare metal alloy brushes, mainly used for military, defense and other non-civilian areas.
Total Circuits
18 rings 2A/ring
Working Life
40 million revolutions
Rated Voltage
0~240VAC/VDC
Rotating Speed
Continuous rotating max 150RPM; Discontinuous rotating max 250RPM.
Working Temperature
-40℃~80℃
Operating Humidity
0~85% RH
Contact Material
Precious Metal
Lead Wires
2A, AWG28#Teflon
Lead Length
Standard 300mm
Dielectric Strength
500VAC@50Hz,60s
Torque
0.02N.m;+0.01N.m/6ring
Res Noise
<0.01Ω
Protect Grade
IP51
Insulation Resistance Power
Power:≥600MΩ/500VDC , Signal:≥600MΩ/500VDC

MC Capsule Slip Rings

Slip rings are suitable for various applications with 360 ° rotation conductive and transmission signal
Imported Engineering Plastic
Extremely high properties of wear resistance, pressure resistance, high temperature resistance, corrosion resistance, ageing resistance
Rigorous Test
250RPM rotating speed test for working life and wearing resistance to ensure the best quality as required
International Standard Quality
Always adhere to the most demanding military quality requirements, and implement the essence of German industrial process standards
Small Size Housing-12.5/22mm OD
Capsule slip ring is widely used in the fields of small apparatus due to itscompact structure and perfect
performance
More Options
There are two styles to satisfy your diferent requirment and needs. The regular model MC400 for the civil use. The high-end model with golden plating and adopting the inporter bears, suitable for the military use.
MOFLON Strength

How a high-quality lever slip ring supplied by Moflon

A well-known manufacturer incl. R&D/Production/Sales, with 7,000㎡ own factory and over 300 employees. Main staffs have over 10 years of related technical experiences

R & D/Production/Quality/Innovation/Service

Since founded. We believe quality and innovation are the life of our enterprise. We pay high attention to R&D, Raw Materials, Production, QC and After Sales Service for providing good products and services.
R & D
Moflon has a strong R & D team with 20 engineers over 10 experiences in this industry, have successfully developed more than 10,000 projects .
Production Capability
We have our own plastic injection factory and machining center, all the critical components made in-house, there are more than assemlby lines in our factory , which guarantee raw material internal control and the fast supply for your desired silp ring.
QA & QC System
There are more 15 steps QC process for your each slip rings in here.
Moflon is the only chinese comapny with level-5 slip ring testing laboratary.
Application & Project
Service Process
Whatever Your Challengs, We Should Talk.
Success in project using slip ring technology means overcoming challenges in every area of your business. Challenges in design, production, cost control, delivery—the list goes on.
Moflon has been helping customers face their most pressing slip ring challenges for over 30 years. And we’ve revolutionized virtually every aspect of how high perfomance slip rings are designed, developed, and produced.
We can help you achieve improved performance while reducing your overall costs
Exhibition & Customer
Packaging & Shipment
FAQ
How to customize the slip rings?
1. What kind of media do you wanna to transmit?
A: Electricity, gas, Ethernet, fiber optic or hybrid slip rings.

2. For electricity, the details should be provided as below:
a. Total wires? The max current of each wire?
b. How many circuits for signal? The frequency and signal type?
c. Whether the signal is sensitive, if sensitive, does it need shielded?

3. For gas or liquid, the details should be provided as below:
a. What's gas do you need to transmit? Is air?
b. How much pressure?
c. What's size of each port? is G1/4"?
d. What is the maximum torque of slip ring that you can accept?
e. How to install? shaft mounting? flange mounting? end of shaft mounting?

4. For Ethernet, the details should be provided as below:
a. 1000M or 100M?
b. Total wires? The max current of each wire?
c. How many circuits for signal? The frequency and signal type?
d. Whether the signal is sensitive, if sensitive, does it need shielded?

5. For fiber optic, the details should be provided as below:
a. Total wires?
b. Connector type?
c. Type of fiber optic?
d. If need electricity or signals, please answer the Q1.

6. What's the rotating speed and how long does it work continuously per day?

7. May i know the application area(working environment)of the slip ring first?
