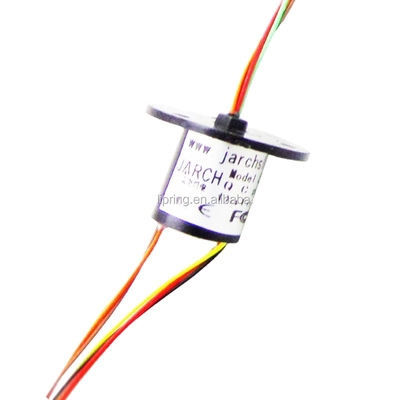

Aluminum Alloy 3 Wires Gold Wind Turbine Slip Ring Capsule For Electrochanical System Smooth Running Slip Rings

Slip rings can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure.

It is also called a rotary electrical interface, Slip Ring Assemblies, Rotary Connector, Slip Ring Units,It can improve electromechanical capability, simplify system design, eliminate possible damage while rotation. It’s the key apparatus of various precision rotary worktable, electric test instrument, manufacture and process control instrument.

Specifications:


The CS series capsule slip ring is a standard and off-the-shelf unit that uses gold contacts on the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections.

The WS022-3P20, with 3 wires and compact 22mm body diameter, which we call our mini slip ring .It using a 90° V-groove ring design for each ring and provides smoother running, lower torque and lower electrical noise than competitor slip rings . It is design For Wind Turbines.


Benefits:


· Smoother running.

· Higher design precision

· Lower electrical noise.

· Lower torque, lower contact resistance

· Rapid delivery

Dimensions:

Applications:


• Wind turbine Slip ring.
• Electrical test equipment.
• Medical equipment.
• Rotary table
• Robotics
• Laboratory equipment
• Manufacturing and process control equipment

Installation Instructions:

  Flange mounted:
