Industrial Equipment Pneumatic Air Shaft Friction Expanding Ring 3 Inch Slip Ring

1 piece
MOQ
Industrial Equipment Pneumatic Air Shaft Friction Expanding Ring 3 Inch Slip Ring
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New
Warranty: 1 Year
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Weight (KG): 20
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty of core components: 1 Year
Core Components: Bearing
Structure: Flexible
Material: 100% Steel
Coatings: Black Oxide
Torque Capacity: Customers'requirements
Model Number: zle36
Service: Customized OEM
Product name: friction rings
Application: Industrial Equipment
Process: Forging+machining+heating Treatment
Quality: High Precision
Surface Treatment: Chrome Plating
Name: key style friction rings for differential shaft
Type: CNC Processing
Certificate: ISO9001:2008/ TS16949:2009
Color: Customzied
Informazioni di base
Certificazione: ISO9001:2008/ TS16949:2009
Model Number: zle36
Termini di pagamento e spedizione
Packaging Details: 1. Wooden case 2. Meet export standards 3. As per your requirements
Descrizione di prodotto
Product Description

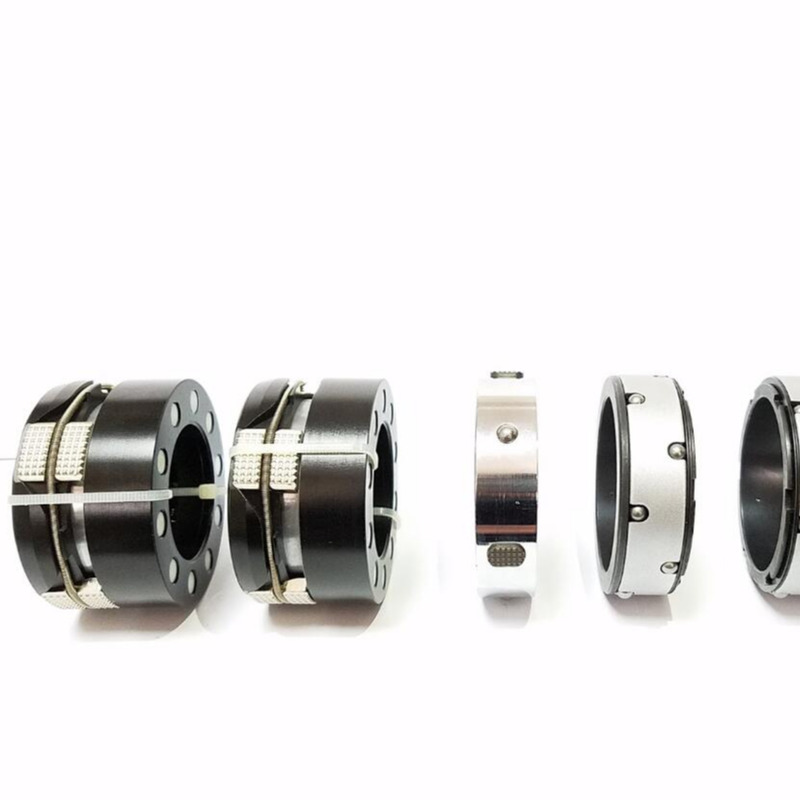

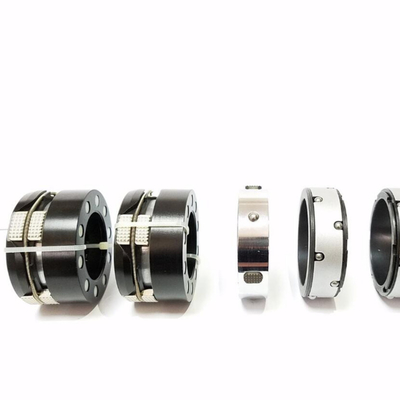

Pneumatic expanding air shaft friction ring 3 inch slip ring

Strength Factory aluminum cnc machining/ air shaft friction ring/slip ring For Slip Axis
Friction ring for 6inch differential air shaft

Friction air shaft differential slip ring friction ring
1.Description of differential shaft ring

The differential shaft ring consists of a plurality of slip rings, which can overcome the problem of unwinding and material damage. The slippage rings are controlled to slip at a certain slip torque (torque), and the amount of slip exactly compensate for the difference in speed, thus it can control the tension of each roll precisely, which ensure the winding quality.

2.The advantages of using differential shaft ring

The use of differential shaft ring improves the speed of the slitter, the accuracy of the winding and the degree of automation.At the same time,it shortens the preparation time and achieve the humanized operation. In particular for polyester thin materials,which have poor tensile resistance and big difference in thickness.The use of differential shaft ring can reduce the difficulty of winding.
Besides, using differential shaft ring to wind or unwind precious materials, metal foil and special paper roll, can greatly improve the production yield, reducing the cost of production.

3. The working principle of friction rings / differential shaft:

1). The central air pressure differential shaft is a type of shaft with tension adjustment. The differential ring on it can slip independent ly .Controlled by the tension system, let the compressed air which has a certain pressure come to axle core, so that it will produce friction torque between the friction parts and the slip ring, and realize constant tension coiling.
2). The central air pressure differential shaft can meet the requirements of high-speed, error in material thickness, multi-stage tension control, high precision requirement on tension control, ,uniformity on the winding end . It’s ideal for double shaft and Center Coiling slitter.
3). The central air pressure differential shaft can be divided into two types: pneumatic locking type and mechanical locking type.
4). Central air pressure differential shaft are made of core roll, differential ring, airbags, friction parts, sealing rings.
Model
External diameter without air inflating(Φmm)
External diameter with air inflating(Φmm)
Apply to reel pipe with internal diarnal diameters as below (Φmm)
1"
Φ24.8mm
Φ24.8-28mm
Φ25-26mm
1.5"
Φ37mm
Φ40mm-Φ42mm
Φ38-38.5mm
2"
Φ49mm
Φ52-54mm
Φ50-51mm
3''
Φ74-75mm
Φ80-82mm
Φ75.5-78mm
4''
Φ99-100mm
Φ104-106mm
Φ101-102mm
5''
Φ125mm
Φ130-133mm
Φ126-128mm
6''
Φ150mm
Φ154-156mm
Φ151-153mm
8''
Φ200mm
Φ206-264mm
Φ202-204mm
10''
Φ250mm
Φ260-264mm
Φ252-256mm
12''
Φ300mm
Φ308-310mm
Φ302-305mm

2.Application of differential air shaft
A.The applicable Machine
It is used for slitting machine,coating machine,cutting machine,printing machine,compounding machine,paper making machine,bag making machine, embossing machine and so on .It can greatly improve the working efficiency and the quality of products.

B.The applicable Material
Differential air shaft has been widely used in plastic film including electronic, capacitor, battery film, plastic wrap,packaging,
composite film, metal foil such as copper foil and aluminum foil, paper and pvc sheet.


Features
The types of slip shafts are different, the slip rings are different, and the width of each slip ring is also different.

Key friction ring: The commonly used width of the key slip ring is 10mm, 15mm, 20mm, 37mm, 50mm;
Ball slip ring: the standard width of the ball slip ring is 25mm;
East extension slip ring: the width of the east extension slip ring is 50mm;
West Village slip ring: West Village slip axis has 30mm, 40mm, 45mm, double gas road West Village slip ring has 22mm, 40mm, 45mm.
Each type of slip axis has its own advantages and disadvantages. Or, each type of slip axis is based on the width of the customer's needs, and the material to be cut to select which kind of slip axis. For example, the ball roller slip shaft is mostly used in our adhesive industry. PET, PE and other membranes use key-type slip shafts. Sheets and the like use the east extension slip shaft. The diaphragm of the lithium battery industry uses the double-gas road. In the lithium battery industry, most of the ear and pole pieces use the West Village slip axis.
Detailed Images
3.The advantages of our products
1). Hight quality material for the shaft ring body and spare parts
The body of the differential shaft ring is made from steel,stainless steel or aluminum. The friction plate can be made from polyurethane, polyethylene, or rubber to realize max tension required.And we can customize according to customer’s drawing or customer’s special requirement.
2). Surface Treatment
Blacking,polishing,anodize,chrome plating,zinc plating,nickel plating,tinting
3). Quality control
We have the quality control system during the whole production fromthe very beginning to the end and our principle is to make sure each shaft is qualified.
Size Information
Size Chart of This Design
Type
Unaerated diameter (ømm)
Inflated diameter(ømm)
Applicable volume tube inner diameter(ømm)
1″
24.8
24.8-28
25-26
1.5″
37
40-42
38-38.5
2″
49
52-54
50-51
3″
74-75
80-82
75.5-78
4″
99-100
104-106
101-102
5″
125
130-133
126-128
6″
150
154-156
151-153
8″
200
206-264
202-204
10″
250
260-264
252-256
12″
300
308-310
302-305
Related Products
Packing&Shipping
Packaging
Our air shafts are usually packaged by standard wooden box,plywood wooden box and carton,also can be packaged as customer's requirement.
Company Introduction
Based on over 15 years experience in air shaft lines, ANHUI ZHELE MECHANICAL AND ELECTRICAL CO.,LTD was founded in 2006, is a production, design integration of the enterprise, using Taiwan professional production technology and advanced production equipment, professional production of Air expanding shaft(key type),Air expanding shaft(friction),Air expanding shaft(leaf type),shaft parts,aluminum roller with rotation shaft,aluminum roller with rotation shaft,aluminum roller without shaft,aluminum roller with stripe,safey chucks(flange type),safety chuk(slip type),safety chuk(pedeatal type),Electromagnetic Clutch,Air cluth,Air brake,Tension detector,EPC Edge Position Control,CPC Center position control,Tension detector,Automatic tension controller,Manual tension controller,Semi-Auto tension controller,Powder,Powder cluth,Powder brake,Electromagnetic clutch,Electromagnetic brake,etc.

Miraculously zhele Electromechanical, leading a few microns fine circles.

ANHUI ZHELE MECHANICAL AND ELECTRICAL CO.,LTD
Contact person: Ana
Tel: 0558-6967888
0558-6628288
008618697699555(also whatsapp and wechat)
Website: www.zlecn.com


Eight reasons to choose us:

1. Perfect service system and after-sale protection.
2. Quality problems will be solved within 24 hours.
3. One-to-one customer service tracking processing.
4. Companies carry out the ERP management, improve enterprise fast response.
5. Quality assurance, one year warranty.
6. Supporting professional matched other equipment.
7. The company has more than one product testing units, the implementation of ISO9001: 2015.
8. Unique development and design capabilities to meet the needs of special-purpose equipment manufacturing.

Five Core strengths:

1. The first domestic independent R & D manufacturer and 10 years of professional manufacturing.
2. Casting exquisite, beautiful, practical and durable.
3. Complete specifications, cost-effective and spot supply.
4. Independent research and development, special specifications can be customized.
5. Selected materials, high-tech treatment, up to the international standard test.
FAQ
1.When can I get the quotation?
We usually quoted within 24 hours after receiving your inquiry. If you are very urgent to get the price, please call us or tell your email, so that we can regard your inquiry priority.

2.How should I place an order?
Please let us know the model number based on our specs for powder clutch, powder brake, air clutch, air brake, electromagnetic clutch, electromagnetic brake and safety chucks, other transmission parts.
For air shafts,air adapter please show us your drawing, or let us know your request, and then we will provide you drawing for confirmation.

3.What’s your MOQ basis?
Normally, we don’t have MOQ request, except the customized mini clutches/brakes.

4.What about the lead time for production?
Honestly, it depends on the order quantity and the type of our products. For powder clutch, powder brake, tension controller,which is about 3-5 days. For safety chucks, air shafts which need about 15-30 days.

5.What is the term of shipment?
We can arrange with EXW, FOB, CIF…etc. You can choose the most convenient one or cost-effective way.

More concerned for our products , please do not hesitate to inquiry now!
