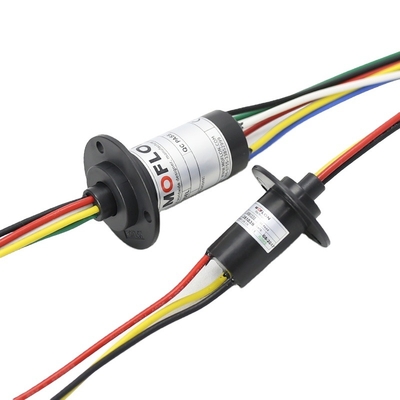

MW1610 Electric Precious Metal Large Current Slip Rings With 6*10A For AC Motor

1.0 Pieces
MOQ
MW1610 Electric Precious Metal Large Current Slip Rings With 6*10A For AC Motor
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: MW1610
Total Circuits: 6 rings 10A
Voltage: 0~380VAC/VDC
Lead Wires: 10A, AWG#16
Lead Length: Standard 300mm
Working Life: 10 Million revs
Rotating Speed: 150RPM
Working temp: -30℃~80℃
Contact Material: precious metal
Torque: 0.1Nm
Insulating Strength: 500VAC@50Hz,60s
Informazioni di base
Model Number: MW1610
Termini di pagamento e spedizione
Packaging Details: carton or wooden case
Supply Ability: 1000 Piece/Pieces per Day
Descrizione di prodotto
Why Choose Us
Welcome to Shenzhen Moflon Technology Co., Ltd.

Intuitive, Innovative, Slip Ring Solutions Offer

An industry leading manufacturer supplying slip rings and rotary unions to companies, contractors, and other end-users.

Here at MOFLON, we have the privilege to work with and provide high perforamce slip ring solutions to some of the largest and most successful companies in the all kinds of Industry.

Let the team at Moflon prove their value in the successful launch of your next critical project.
About MOFLON
With over 30 years manufacturing and 15 exporting experience, our experienced engineers, production and QA QC team effectively ensure the advanced and practical products.

Work With Moflon, Work With Confidence Knowing Our Reputation

Our Advantage:
Products Description

MW Series Large Current Slip Ring

MW series large current slip ring is designed for big power transmitting, max current can support 7500A, with low contact resistance when 360°rotating.
The housing of large current slip ring is designed with aluminum alloy or antiflaming engineering plastic, fast heat emission, and have a large number of cooling holes, Each slip ring would be tested for large current shock and temperature rise before delivery.
MW Series Models
Model#
ID(mm)
OD(mm)
Circuits（rings）
Current
Voltage (VDC/VAC)
MW1000
0
22~30
1~12
10A~40A
440
MW2025
25.4
86
1~12
10A~150A
690
MW2050
50
119
1~18
10A~500A
690
MW3086
0
86
1~24
10A~150A
690
MW3119
0
119
1~36
10A~500A
690
MW4032
0
32
1~4
30A
690
MW4045
0
45
6~8
30A
690
MW5045
0
45
1
0~500A
690
MW5158
0
158
1~4
100A~500A
690
60% of MOFLON's sales are customized solutions, please contact customer service for special requirements.

MW1000 series slip rings

MW1000 Series slip rings are small and compact with OD 22~29.8mm * L 26~78mm.
Solid style without through bore and stator flange installation, standard, off-the-shelf.
Color-coded lead wires are used on both the stator and rotor for simplified electrical connections.
Each circuit can pass 10A/20A/30A/40A/60A, supporting 1 to12 circuits.
The rotary electrical device is most effective, and if you require some customization on electrical swivel or electric swivel,rotary electrical.
Military quality-
Stable and Reliable
Each product goes through dozens of working procedure,and every procedure strives for excellence to ensure that every product you will receive is the best.
Imported Engineering Plastic
Extremely high properties of wear resistance, pressure resistance, high temperature resistance, corrosion resistance, ageing resistance
Rigorous Test
150RPMrotating speed test for working life and wearing resistance to ensure the best quality as required.
MOFLON Strength

How a high-quality lever slip ring supplied by Moflon

A well-known manufacturer incl. R&D/Production/Sales, with 7,000㎡ own factory and over 300 employees. Main staffs have over 10 years of related technical experiences

R & D/Production/Quality/Innovation/Service

Since founded. We believe quality and innovation are the life of our enterprise. We pay high attention to R&D, Raw Materials, Production, QC and After Sales Service for providing good products and services.
R & D
Moflon has a strong R & D team with 20 engineers over 10 experiences in this industry, have successfully developed more than 10,000 projects .
Production Capability
We have our own plastic injection factory and machining center, all the critical components made in-house, there are more than assemlby lines in our factory , which guarantee raw material internal control and the fast supply for your desired silp ring.
QA & QC System
There are more 15 steps QC process for your each slip rings in here.
Moflon is the only chinese comapny with level-5 slip ring testing laboratary.
Application & Project
Service Process
Whatever Your Challengs, We Should Talk.
Success in project using slip ring technology means overcoming challenges in every area of your business. Challenges in design, production, cost control, delivery—the list goes on.
Moflon has been helping customers face their most pressing slip ring challenges for over 30 years. And we’ve revolutionized virtually every aspect of how high perfomance slip rings are designed, developed, and produced.
We can help you achieve improved performance while reducing your overall costs
Exhibition & Customer
Packaging & Shipment
FAQ
How to customize the slip rings?
1. What kind of media do you wanna to transmit?
A: Electricity, gas, Ethernet, fiber optic or hybrid slip rings.

2. For electricity, the details should be provided as below:
a. Total wires? The max current of each wire?
b. How many circuits for signal? The frequency and signal type?
c. Whether the signal is sensitive, if sensitive, does it need shielded?

3. For gas or liquid, the details should be provided as below:
a. What's gas do you need to transmit? Is air?
b. How much pressure?
c. What's size of each port? is G1/4"?
d. What is the maximum torque of slip ring that you can accept?
e. How to install? shaft mounting? flange mounting? end of shaft mounting?

4. For Ethernet, the details should be provided as below:
a. 1000M or 100M?
b. Total wires? The max current of each wire?
c. How many circuits for signal? The frequency and signal type?
d. Whether the signal is sensitive, if sensitive, does it need shielded?

5. For fiber optic, the details should be provided as below:
a. Total wires?
b. Connector type?
c. Type of fiber optic?
d. If need electricity or signals, please answer the Q1.

6. What's the rotating speed and how long does it work continuously per day?

7. May i know the application area(working environment)of the slip ring first?
