Heating Roller Mercury Slip Ring A4H A1H25S A6H A8H A1030 A1230 Filling Equipment

Construction and Function

   The JARCH rotating electrical connectors are using the special insulation, sealing, and conductive technologies. The out case material is the aluminum alloy or stainless steel.

   They are used for any kind of rotating objects of signals like micro voltage, current, EMF, thermos couple, strain gauge, audio, video, high frequency etc. and electric power connections.

Asiantool High Precious Signal 60RPM Contact Mercury Slip Ring Rotary joint For Robot Arms

   All types of our liquid metal rotary connectors support CE RoHS compliance.

   Electrical Rotating Connector Multi conductors Mercury Slip Rings

   Please Click here:contact us for details.

Specification of Mercury Slip Ring A4H A1H25S A6H A8H A1030 A1230

A Series Mercury Slip Ring

JARCH mercury slip ring also called mercury rotating connector(rotary joint),support 1~12circuits power /signal(current 0.1mA~1500A).It's is produced with special sealing materials,insolution and conductive technology,made of aluminum alloy or stainless steel,applied for any rotating objects of signal transmitting such as:tiny voltage, EMF, thermocouple, strain gauge,audio and video signals, high frequency, computer signals and electric power connections.

*If no standard models suitable , contact us for custom solutions

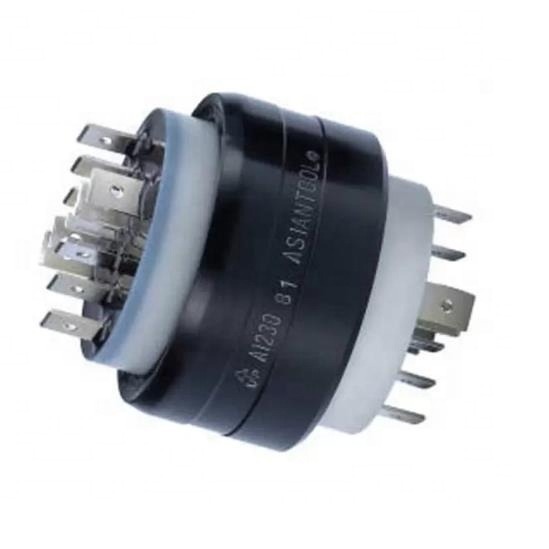

Mercury Slip Ring A4H A1H25S A6H A8H A1030 A1230

Benefits of High Precious Signal 60RPM Contact Mercury Slip Ring Rotary joint For Robot Arms

• Unique signal handling performance with minimal electrical circuit noise
• Very low electric noise
• Anti-jamming ,very low cost
• Very low contact resistance (Less than 1mΩ)
• No maintenance and better reliability than traditional sling rings
• Suitable for signal and power transfer of rotating devices or instruments

Application of Mercury Slip Ring A4H A1H25S A6H A8H A1030 A1230

• Index table for signal and power connection

• Resistors cutting machine

• Package machine

• Heating roller

• Plating equipment

• Filling equipment

Notice of Mercury Slip Ring A4H A1H25S A6H A8H A1030 A1230

1 Use no more than 60 temperature.

2 The vertical direction when installed, to keep U P upward, preservation needs to keep up also.

3  Not for rotating connector itself or copper terminal welding heat.

4  Dedicated terminals should not be reused many times.

5  Revolver such as vibrations will reduce service life.

6  This connector can in shell or plastic parts into axis, a floating pull in external fixation department, but

never can withstand weight.

 Mercury Slip Ring A4H A1H25S A6H A8H A1030 A1230

If you have any questions, please contact us without any hesitation.
